| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | AE50 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | TPE |
|---|---|---|---|
| Fitted Pulse Valve Port: | 2'', 2 1/2'' | Fitted Pulse Valve Model: | AE1450B, AE2450B, AE1460B, AE2460B |
| High Light: | 2'' AE1450B TPE Membrane,2.5'' AE1460BTPE Membrane,Autel TPE Diaphragm |
||

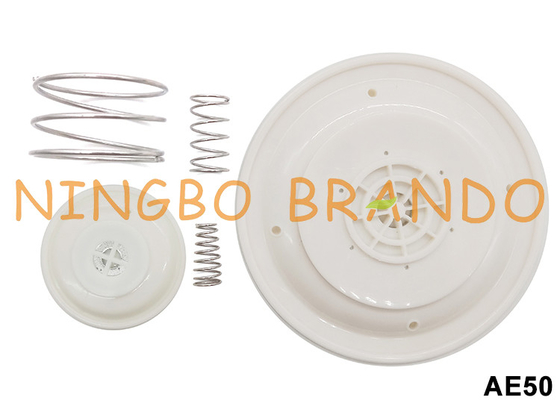

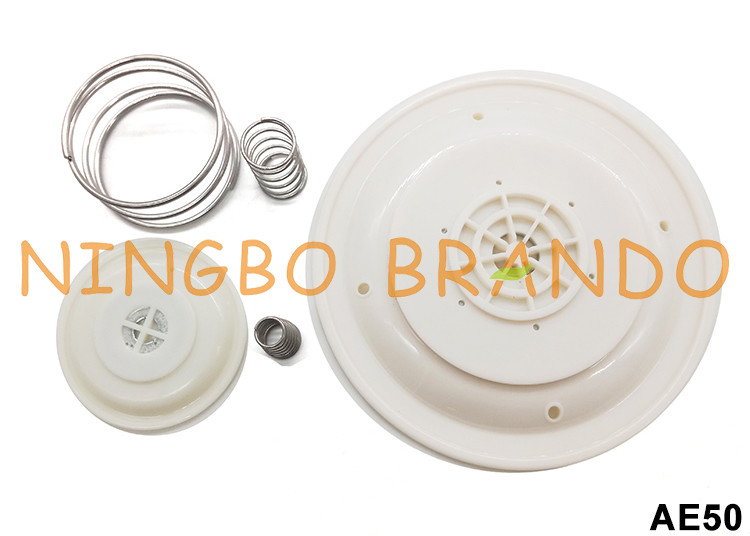

2'' TPE Membrane For Autel Dust Collector Pulse Valve AE1450B AE1460B
TPE Diaphragm (Membrane) for 2'' & 2.5'' AUTEL pulse valve AE1450B, AE2450B, AE1460B, AE2460B; Pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
Ordering Code of Diaphragm For AUTEL Pulse Valve:
|
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
|
AE18
|
AE1818B, AE2818B
|
3/4''
|
TPE
|
|
AE25
|
AE1822B, AE2822B
AE1825B, AE2825B
AE1825R, AE2825R |
1''
|
TPE
|
|
AE40
|
AE1440B, AE2440B
AE1440R, AE2440R
|
1-1/2''
|
TPE
|
|
AE50
|
AE1450B, AE2450B
AE1460B, AE2460B
|
2'', 2-1/2''
|
TPE
|
|
AE75
|
AE1475I12, AE2475I12
|
3''
|
TPE
|
|
Tips: FKM+PTFE also available
|
|||
Main Dimension of 2'' & 2.5'' Pulse Valve Diaphragm:
Main Diaphragm:
Secondary Diaphragm:
Video of 2'' & 2.5'' Pulse Valve Diaphragm:
Pictures of Solenoid Valve Membrane Production:
