| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR6-038S |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | TPE |
|---|---|---|---|
| Fitted Pulse Valve Port: | 3'' | Fitted Pulse Valve Model: | AE1475I12, AE2475I12 |
| High Light: | 3'' Diaphragm Repair Kit,AE1475I12 3'' Diaphragm Repair Kit,Autel 3'' Diaphragm |
||

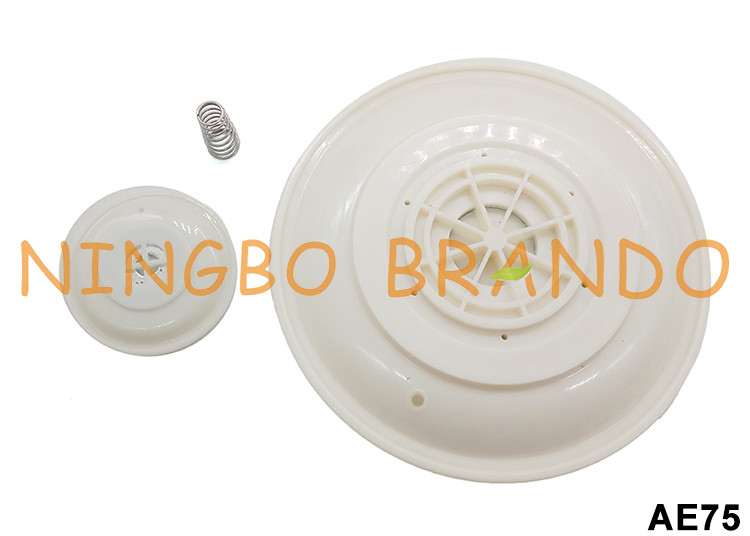

3'' Diaphragm Repair Kit For Pulse Jet Valve AE1475I12 AE2475I12
TPE Diaphragm (Membrane) for 3'' AUTEL pulse valve AE1475I12, AE2475I12; Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Ordering Code of Diaphragm For AUTEL Pulse Valve:
|
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
|
AE18
|
AE1818B, AE2818B
|
3/4''
|
TPE
|
|
AE25
|
AE1822B, AE2822B
AE1825B, AE2825B
AE1825R, AE2825R |
1''
|
TPE
|
|
AE40
|
AE1440B, AE2440B
AE1440R, AE2440R
|
1-1/2''
|
TPE
|
|
AE50
|
AE1450B, AE2450B
AE1460B, AE2460B
|
2'', 2-1/2''
|
TPE
|
|
AE75
|
AE1475I12, AE2475I12
|
3''
|
TPE
|
|
Tips: FKM+PTFE also available
|
|||
Main Dimension of 3'' Pulse Valve Diaphragm:
Main Diaphragm:
Secondary Diaphragm:
Video of 3'' Pulse Valve Diaphragm:
Pictures of Solenoid Valve Membrane Production:
