| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CA76MM |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 3 Inch | Valve Series: | MM Series |
|---|---|---|---|
| Valve Structure:: | Manifold Mount | Diaphragm Material: | Nirtile, Viton |
| Working Pressure Range: | 0.35 To 0.85 MPa | Coil Voltages: | DC24V, AC110V, AC220V |
| Highlight: | Goyen Type Pulse Jet Valve,CA76MM Pulse Valve,Pulse Solenoid Valve 3 Inch |
||

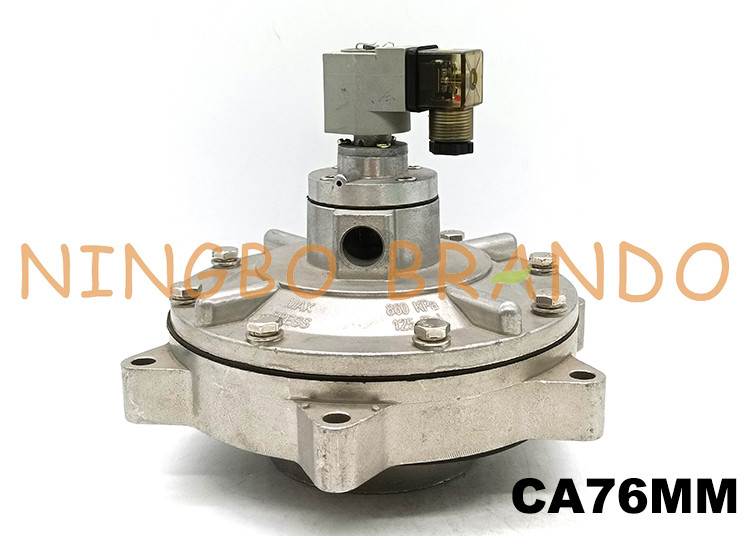

Goyen Type CA76MM 3'' Pulse Jet Valve Manifold Mount MM Series
The Goyen Type CA76MM is a manifold mount pulse jet valve, these diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve.
Specification of MM Series Pulse Jet Valves:
|
Model No
|
CA25MM
|
CA40MM
|
CA50MM
|
CA62MM
|
CA76MM
|
CA102MM
|
||
|
Nominal Size
|
25
|
40
|
50
|
62
|
76
|
102
|
||
|
Port Size
|
mm
|
25
|
40
|
50
|
62
|
76
|
102
|
|
|
inch
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
3 1/2''
|
4''
|
|
|
Pressure Range
|
0.35 to 0.85 MPa
|
|||||||
|
Temp.
Range
|
NBR
|
-40 to 82 ℃
|
||||||
|
FKM
|
-29 to 232 ℃
|
|||||||
Main Dimension of CA76MM Dust Colletor Pulse Valve:
Ordering Code of MM Series Pulse Jet Valve:
Video of Goyen Type CA76MM Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
