| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CA45FS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 1 1/2 Inch | Valve Series: | FS Series |
|---|---|---|---|
| Valve Structure:: | Flanged Port, Right Angle | Diaphragm Material: | Nirtile, Viton |
| Working Pressure Range: | 0.35 To 0.85 MPa | Coil Voltages: | DC24V, AC110V, AC220V |
| High Light: | Flanged Inlet Pulse Jet Valve,Goyen Type Pulse Valve,CA45FS Dust Collector Valve |
||

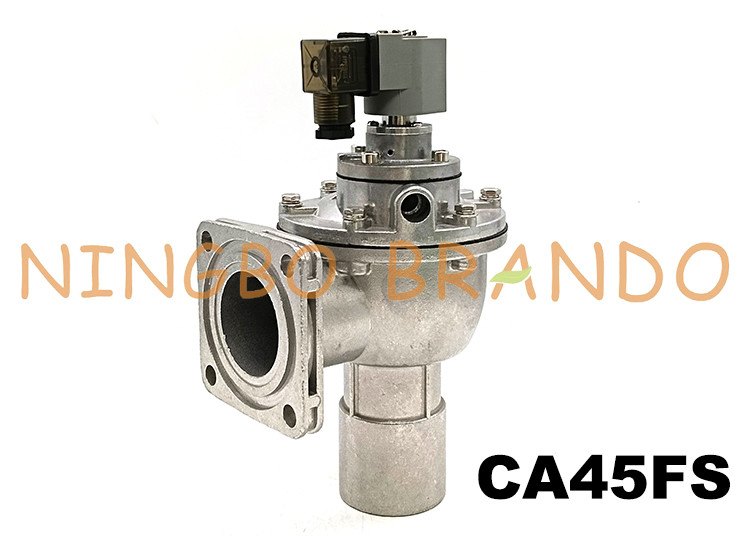

Goyen Type CA45FS 1 1/2'' Pulse Jet Valve Flanged Inlet FS Series
The Goyen Type CA45FS is a fs series pulse jet valve with a flanged inlet port and slide seal outlet port. Equipped with Shockwavespringless diaphragm. The 4 series valves are available as remote pilot valves and may be converted to integral pilot using either the RCA3DM or RCA3PV screw-in pilots. Outlet is at 90°to inlet. The FS valve range features a larger diameter inlet providing higher performance than the DD.T or ST body styles.
Specification of FS Series Pulse Jet Valves:
|
Model Number
|
CAC25FS
|
CA45FS
|
|
Port Size
|
1''
|
1.5''
|
|
Valve Structure
|
Right Angle, Flanged Port
|
|
|
Working Pressure Range
|
0.35 to 0.85 Mpa
|
|
|
Coil Voltage
|
24VAC, 110VAC, 220VAC, 24VDC
|
|
|
Valve Body Material
|
Aluminium Alloy
|
|
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|
Main Dimension of CA45FS Solenoid Pulse Jet Valve:
Ordering Code of FS Series Pulse Jet Valve:
Video of Goyen Type CA45FS Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
