| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | D50 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bag, Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |

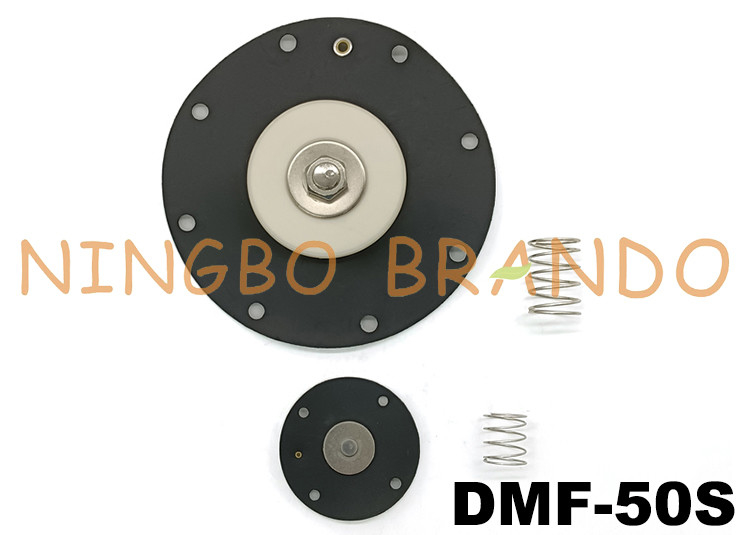

| Diaphragm Materia: | Rubber, Nylon | 1 Set: | 1PC Big Diaphragm, 1PC Small Diaphragm, 2PCS Springs |
|---|---|---|---|
| Fitted Pulse Valve Port Size: | 2" | Product Name: | Pulse Valve Diaphragm |
| Diaphragm Material: | NBR, FKM | Fitted Pulse Valve Model: | DMF-Z-50S, DMF-Y-50S, DMF-T-50S |
| Highlight: | NBR Diaphragm Repair Kit,SBFEC Impulse Valve Diaphragm,D50 Pulse Diaphragm Repair Kit |
||
Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S
The structure of diaphragm valve is simple, fluid resistance is small, flow capacity is larger than other types of valves with the same specifications; No leakage, can be used for high viscosity and suspended particle medium adjustment. The diaphragm isolates the media from the stem cavity, so no packing media will leak out. However, due to the limitation of diaphragm and lining materials, the pressure resistance and temperature resistance are poor, which are generally only applicable to the nominal pressure of 1.6mpa and 1500 below.
Ordering Number of Diaphragm For SBFEC Pulse Valve:
|
Diaphragm For New Version BFEC Pulse Valves
|
||
|
Diaphragm Order Code
|
Fitted Pulse Valve Model
|
Valve Port Size
|
|
DTY
(Secondary Diaphragm)
|
All Double Diaphragm Pulse Valves
|
/
|
|
D20A
|
DMF-Z20
|
3/4''
|
|
DMF-ZM-20
|
||
|
D20B
|
DMF-ZL-B
|
3/4''
|
|
D25
|
DMF-Z-25
|
1''
|
|
DMF-ZM-25
|
||
|
DMF-Y-25
|
||
|
DMF-T-20
|
3/4''
|
|
|
D40
|
DMF-Z-40S
|
1-1/2''
|
|
DMF-Y-40S
|
||
|
DMF-ZF-40S
|
||
|
DMF-ZM-40S
|
||
|
DMF-T-25S
|
1''
|
|
|
D50
|
DMF-Z-50S
|
2''
|
|
DMF-Y-50S
|
||
|
DMF-T-50S
|
||
|
D62
|
DMF-Z-62S
|
2-1/2''
|
|
DMF-Y-62S
|
||
|
DMF-T-62S
|
||
|
D76
|
DMF-Z-76S
|
3''
|
|
DMF-Y-76S
|
||
|
D102
|
DMF-Z-102S
|
4''
|
|
DMF-Y-102S
|
||
|
D102A
|
DMF-Y-102SA
|
4''
|
|
D300
|
DMF-N-300
|
12''
|
|
Diaphragm For Old Version BFEC Pulse Valves
|
||
|
LD50
|
DMF-Z-50S (Old)
|
2''
|
|
DMF-Y-50S (Old)
|
||
|
DMF-T-50S (Old)
|
||
|
LD62
|
DMF-Z-62S (Old)
|
2-1/2''
|
|
DMF-Y-62S (Old)
|
||
|
DMF-T-62S (Old)
|
||
|
LD76
|
DMF-Z-76S (Old)
|
3''
|
|
DMF-Y-76S (Old)
|
||
Main Dimension of D50 Diaphragm For BFEC Pulse Valve:
Video of D50 Membrane For SBFEC Pulse Jet Valve:
Pictures of Pulse Valve Diaphragm Production:
