| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CAC25FS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 1 Inch | Valve Series: | FS Series |
|---|---|---|---|
| Valve Structure:: | Flanged Port | Coil Voltages: | DC24V, AC110V, AC220V |
| Diaphragm Material: | NBR, FKM | Working Pressure Range: | 0.35 To 0.85 MPa |
| Highlight: | FS Series Pulse Jet Valve,Pulse Jet Valve 1.5 Inch,Solenoid Pulse Valve For Baghouse |
||

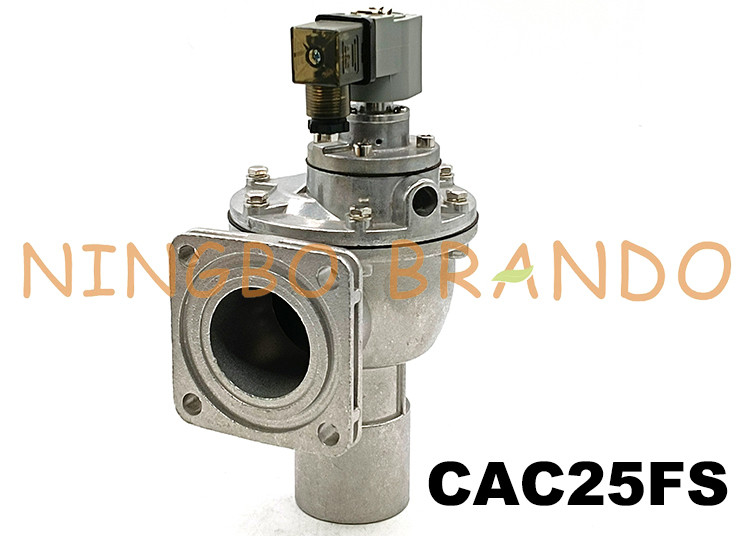

CAC25FS Goyen Type Pulse Jet Valve 1" FS Series Flanged Inlet For Dust Collector
FS Series with very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve.Outlet at 90° to inlet. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
Main Dimension of CAC25FS Solenoid Pulse Jet Valve:
Technical Data of FS Series Pulse Jet Valves:
|
Model Number
|
CAC25FS
|
CA45FS
|
|
Port Size
|
1''
|
1.5''
|
|
Valve Structure
|
Right Angle, Flanged Port
|
|
|
Working Pressure Range
|
0.35 to 0.85 Mpa
|
|
|
Coil Voltage
|
24VAC, 110VAC, 220VAC, 24VDC
|
|
|
Valve Body Material
|
Aluminium Alloy
|
|
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|
Ordering Code of FS Series Pulse Jet Valve:
Video of CAC25FS Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
