| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CA45DD |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 1 1/2 Inch | Valve Series: | DD Series |
|---|---|---|---|
| Valve Structure:: | Dresser Nut, Right Angle | Coil Voltages: | DC24V, AC110V, AC220V |
| Diaphragm Material: | Nitrile, Viton | Working Pressure Range: | 0.35 To 0.85 MPa |
| High Light: | 1.5 Inch Pulse Jet Valve,CA45DD Solenoid Pulse Jet Valve,Pulse Solenoid Valve For Bag Filter |
||

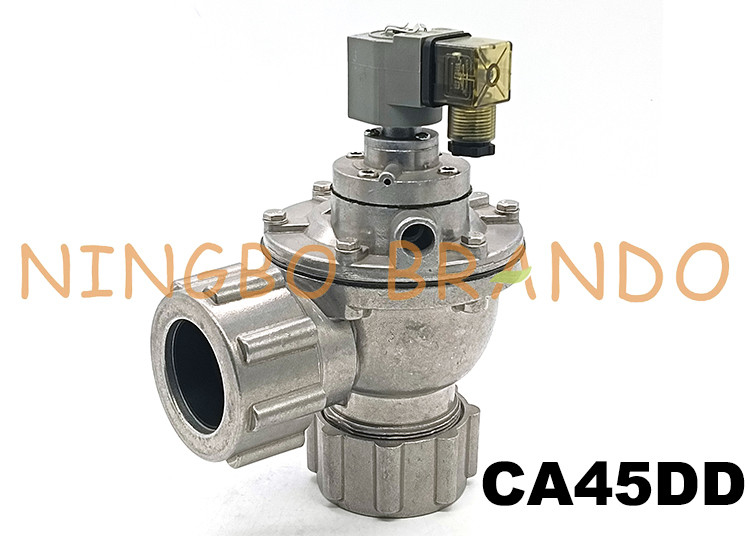

CA45DD 1 1/2'' Goyen Type Pulse Jet Valve Solenoid Dresser Nut For Baghouse
DD series pulse jet valve is with double head inlet and outlet air port. High performance diaphragm valve with dresser nut ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
Technical Data of DD Series Pulse Jet Valves:
|
Model No
|
CA20DD
|
CA25DD
|
CA45DD
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
|
Pipe Connection
|
Dresser Nut
|
||
|
Diaphragm Number
|
1
|
1
|
2
|
|
Working Pressure Range
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
||
|
Valve Body Material
|
Aluminum Alloy
|
||
Dimension of CA45DD Solenoid Pulse Jet Valve:
Ordering Code of DD Series Pulse Jet Valve:
Video of CA45DD Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
