| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CA35T |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 1 1/2 Inch | Valve Series: | T Series |
|---|---|---|---|
| Valve Structure:: | Right Angle, Threaded Port | Coil Voltages: | 24VDC, 110VAC, 220VAC |
| Diaphragm Material: | Nitrile, Viton | Working Pressure Range: | 0.35 To 0.85 MPa |
| High Light: | 1 1/2 Inch Pulse Jet Valve,Right Angle Pulse Jet Valve,Pulse Valve For Baghouse |
||

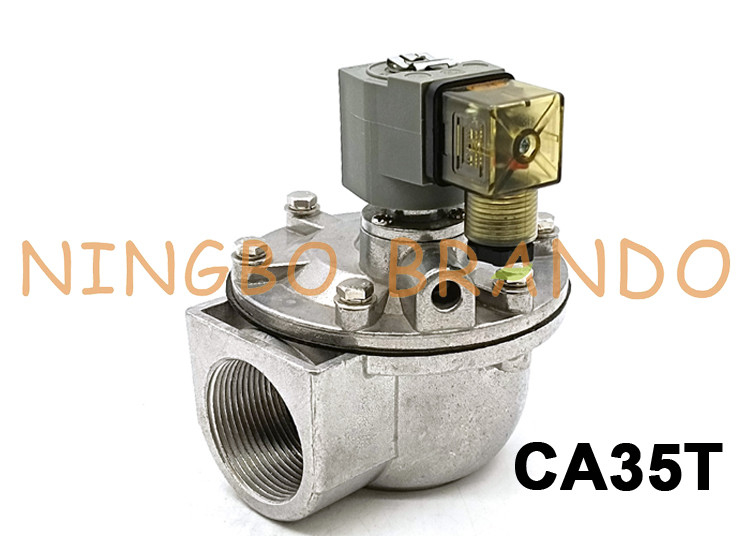

CA35T Goyen Type Pulse Jet Valve Right Angle Threaded 1 1/2'' For Dust Collector
The right angle pulse valve is the key component of the pulse bag filter and can be called the "heart" of the pulse bag filter. Its performance directly affects the ash cleaning effect of the bag filter. The solenoid pulse jet valve is the main component of the bag filter, with more than 1 million times of injection.
Technical Data of T Series Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Dimension of CA35T Pulse Jet Valve:
Ordering Code of T Series Pulse Jet Valve:
Video of CA35T Pulse Jet Valve:
