| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | DMF-Z-62S |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 2 1/2" | Valve Type: | Right Angle |
|---|---|---|---|
| Valve Operation: | Diaphragm Pilot Operated | Coil Voltages: | DC24V, AC110V, AC220V |
| Diaphragm Material: | Nitrile, Viton | Working Pressure Range: | 1 To 8 Bar |
| Highlight: | 2 1/2 Inch Pulse Jet Valve,Right Angle Pulse Jet Valve,DMF-Z-62S Pulse Valve |
||

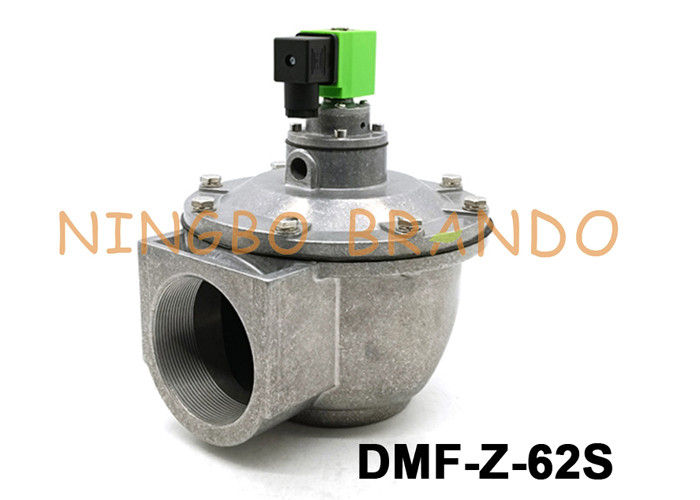

BFEC 2.5" DMF-Z-62S Right Angle Diaphragm Pulse Jet Valve For Baghouse
The pulse jet valve is composed of an electromagnetic pilot head, a diaphragm and a valve body. The area of the rear cavity of the diaphragm is larger than that of the front cavity, and the pneumatic force is large, so that the diaphragm is in the closed position. The diaphragm in the pulse valve divides the solenoid valve into the front and rear air chambers. The high-pressure gas is connected from the air inlet and enters the lower air chamber. When the pulse jet valve is not powered on, the gas enters the pressure reducing chamber through the constant pressure pipes of the upper and lower shells and the orifices therein.
Technical Data of Right Angle Pulse Jet Valves:
Dimension of DMF-Z-62S Pulse Jet Valve:
More BFEC Pulse Valves for you to choose:
|
|
|
|
| Right Angle Type | Quick Mount Type | Straight Through Type | Submerged Type |
|
|
|
|
| Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
Video of DMF-Z-62S Pulse Valve:
