| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | VNP208 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Dust Collector Pulse Valve | Connection Size: | 1'' |
|---|---|---|---|
| Connection Type: | Threaded | Structure: | Right Angle |
| Series: | 200 Series | Diaphragm Material: | NBR, Viton |
| Working Pressure Range: | 0.5 To 7.5 Bar | Coil Voltage: | 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | Mecair Pulse Jet Diaphragm Valve,1'' Mecair Pulse Valve,Mecair Pulse Valve VNP208 |
||

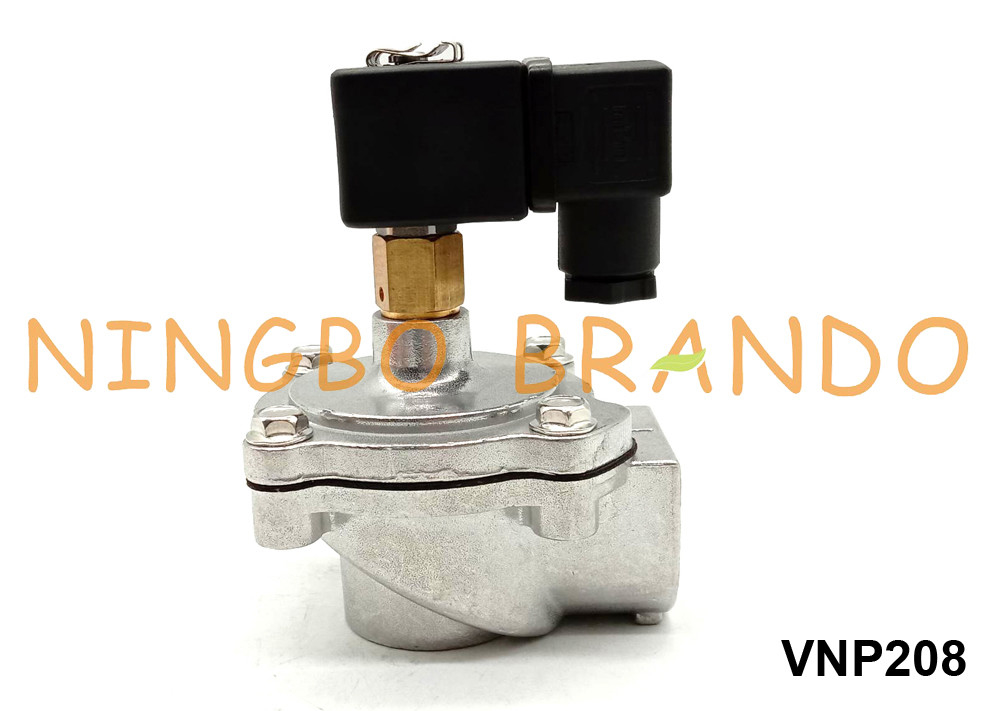

VNP208 Mecair Type 1'' Pulse Jet Diaphragm Valve For Dust Removal
Pulse valves are specifically developed for filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Those applications require high peak pressure, high flow rates, long life, and extremely fast valve opening and closing for effective filter cleaning while minimizing compressed air waste.
For the functional design of a pulse valve, there are multiple connection options, including threaded, dresser, and even a quick-mount option that enables faster, easier, and more secure installation.
Technical Data of 200 Series Threaded Pulse Jet Valves:
|
Model
|
VNP206
|
VNP208
|
VNP212
|
VNP214
|
VNP216
|
VNP220
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
|
Valve Structure
|
90° Right Angle
|
|||||
|
Pipe Connection
|
Threaded
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Diaphragm Material
|
NBR, FKM
|
|||||
|
Working Pressure
|
0.5 to 7.5 bar
|
|||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Dimension of VNP208 Pulse Jet Valve:
Video of VNP208 Pulse Jet Valve:
