| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BC-12 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 10000 pcs per month |
| Product Name: | Pulse Controller | Input Voltage: | 24VDC, 220VAC |
|---|---|---|---|
| Output Voltage: | 24VDC, 220VAC | Pulse Durtion: | 0.03 To 0.2 Seconds |
| Pulse Frequency: | 1 To 30 Seconds | Max Output Channel: | 12 Channel |
| High Light: | Pulse Controller Timer,Pulse Signal Controller,Pulse Jet Controller |
||

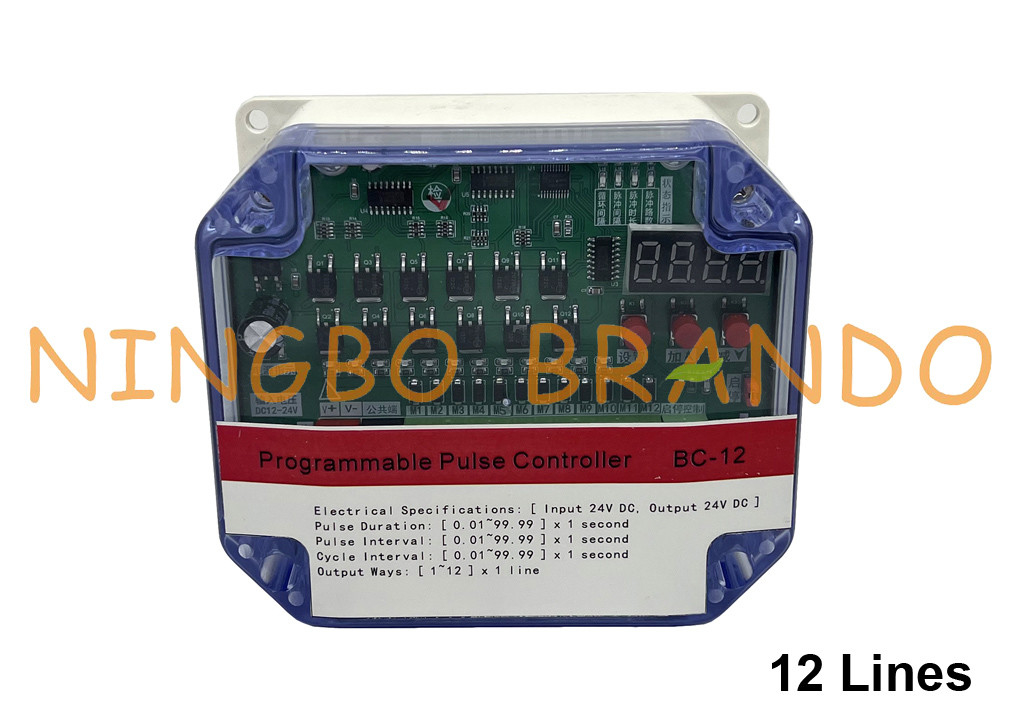

12 Channel Pulse Jet Valve Signal Controller Timer For Dust Collector
Pulse valve controller is the main control equipment in the dust cleaning system of pulse jet dust collector. Its output signals control the solenoid valves, which spray and inject compressed air to clear dust from the filter elements in sequence. The controller output pulse interval and pulse width are set according to the dust cleaning requirement of the dust collector to ensure that the system resistance remains within the set range.
Technical Data of Pulse Jet Valve Controller:
|
Model No
|
BC-08
|
BC-10
|
BC-12
|
BC-20
|
BC-24
|
BC-30
|
BC-36
|
BC-56
|
BC-64
|
|
Output Channel
|
1-8
|
1-10
|
1-12
|
1-20
|
1-24
|
1-30
|
1-36
|
1-56
|
1-64
|
|
Input Voltage
|
24VDC, 220VAC, Other voltage can be customized
|
||||||||
|
Output Voltage
|
24VDC, 220VAC, Other voltage can be customized
|
||||||||
|
Pulse Frequency
|
1 to 30 Seconds
|
||||||||
|
Pulse Durtion
|
0.03 to 0.2 Seconds
|
||||||||
|
Working Environment
|
1. -25°C~+55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock
|
||||||||
Main Dimension of Pulse Jet Valve Controller:
|
Output Lines
|
1-8
|
1-20
|
1-36
|
1-64
|
|
Dimension
|
115x135x65
|
160x160x95
|
230x150x90
|
248x188x105
|
Details Images of Pulse Jet Valve Controller:
Product Video of 12 Lines Pulse Controller:
More Dust Collector Spare Parts:
| SBFEC Type Pulse Jet Valve | Goyen Type Pulse Jet Valve | ASCO Type Pulse Jet Valve | Turbo Type Pulse Jet Valve |
|
|
|
|
| Solenoid Valve Coil | Solenoid Valve Armature | Diaphragm | Controller |
|
|
|
|
