| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-Z-40S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1-1/2''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | DMF Series Pulse Solenoid Valve,Right Angle Pulse Solenoid Valve,SBFEC DMF-Z-40S |
||

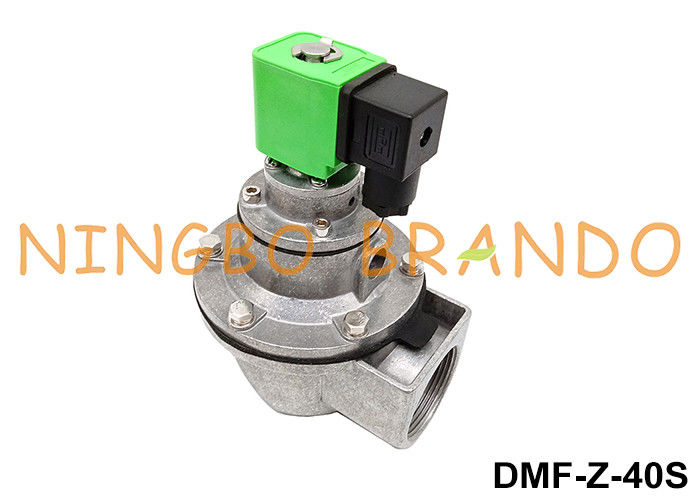

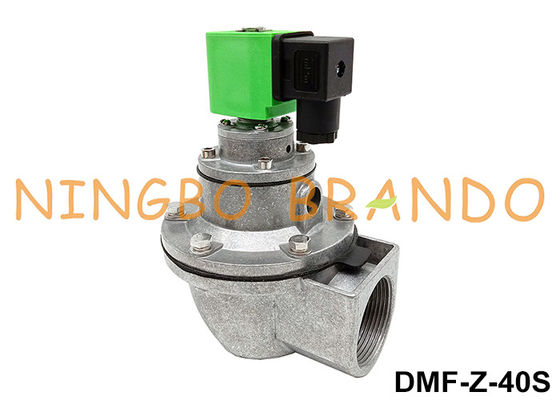

DMF Series Right Angle Pulse Solenoid Valve DMF-Z-40S 220 Volt
DMF-Z-40S Solenoid Pulse Valve is Right Angle Electric Magnetic Valve. Widely used in dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
Dust collector pulse valve including right angle style and embedded pulse valve style, including single diaphragm and double diaphragm, it's according the size of the Dust collector pulse valve.
Technical Data of SBFEC Type DMF Series Right Angle Pulse Jet Valve:
|
Model
|
Nominal diametrer
|
Number of diaphragms
|
Inlet
|
Outlet
|
Weight (kg)
|
|
|
mm
|
inch
|
|||||
|
DMF-Z-20
|
Φ20
|
3/4''
|
1
|
G3/4''
|
G3/4''
|
0.65
|
|
DMF-Z-25
|
Φ25
|
1'''
|
1
|
G1''
|
G1''
|
0.8
|
|
DMF-Z-40S
|
Φ40
|
1 1/2''
|
2
|
G1 1/2''
|
G1 1/2''
|
1.4
|
|
DMF-Z-50S
|
Φ50
|
2''
|
2
|
G 2''
|
G2
|
2.4
|
|
DMF-Z-62S
|
Φ62
|
2 1/2''
|
2
|
G2 1/2''
|
G2 1/2''
|
3.5
|
|
DMF-Z-76S
|
Φ76
|
3''
|
2
|
G3''
|
G3''
|
4.3
|
|
DMF-Z-90S
|
Φ90
|
3 1/2''
|
2
|
G3 1/2''
|
G3 1/2''
|
5.75
|
|
DMF-Z-102S
|
Φ102
|
4''
|
2
|
G4''
|
G4''
|
7.3
|
|
DMF-ZL-B
|
Φ20
|
3/4''
|
1
|
G3/4''
|
Φ27
|
0.75
|
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
