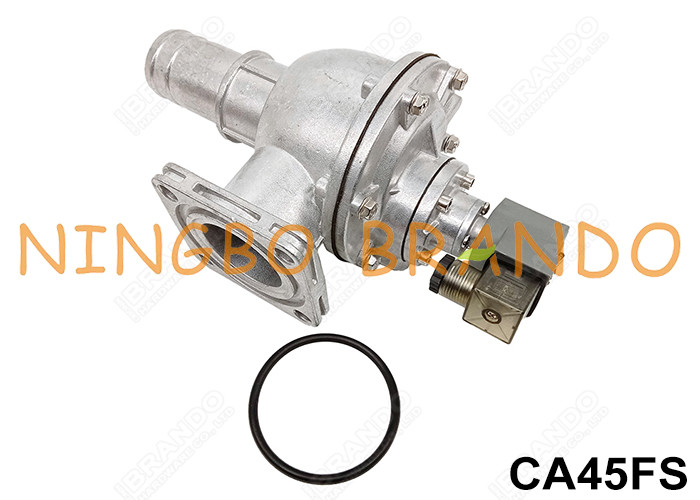

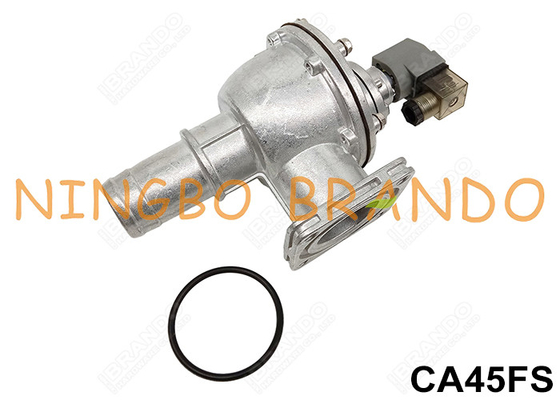

Name: CA45FS 1.5" Flange Type Pulse Solenoid Valve For Dust Collector
Brand: Brando
SKU: CA45FS
Rating: 4.9 (178 reviews)

Home Products Pulse Jet Valve

CA45FS 1.5" Flange Type Pulse Solenoid Valve For Dust Collector

Product Details:

Place of Origin:	China Ningbo
Brand Name:	Brando
Certification:	CE
Model Number:	CA45FS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Inner Boxes, Carton, Pallet
Delivery Time:	4-9 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	CA45FS Goyen Replacement Pulse Jet Valve	Valve Type:	Flanged Valve
Port Size:	2'' Inlet, 1 1/2'' Outlet	Connection:	Weldless Flange
Pilot Type:	Integral Pilot	Voltage:	AC24V, AC110V, AC220V, DC12V, DC24V
Diaphragm Material:	NBR (Buna)	Number Of Diaphragm:	2
Working Pressure:	0.3MPa~0.8MPa	Environment Temperature:	-5℃~+55℃
High Light:	1.5" Pulse Solenoid Valve , Flange Type Pulse Solenoid Valve , Goyen CA45FS

CA45FS 1.5" Flange Type Pulse Solenoid Valve For Dust Collector

Description of FS Series Pulse Jet Valve:
CA45FS Nitrile NBR diaphragm pulse valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. A diaphragm valve that is controlled by a pilot valve such as electromagnetic or pneumatic, and can open and close a high-pressure gas source to generate a pulse.

Techincal data of Goyen type FS series Dust Collector Diaphragm Valve:

Model No.	CA25FS	CA45FS
Operating Pressure	0.3~0.8MPa
Environment Temperature	-5~+55℃
Relative Humidity	≤ 85%
Working Fluid	Compressed air
Voltages	AC24V, AC110V, AC220V, DC12V, DC24V
Membrane Lifes	More than 1,000,000 times
Orifice Diameter	φ25mm	φ45mm
Port Sizes	1 1/2'' In, 1" Out	2'' In, 1 1/2'' Out

Overall dimension of 1 1/2 Inch Dust Collector Pulse Solenoid Valve:

CA45FS 1.5" Flange Type Pulse Solenoid Valve For Dust Collector 0

YouTube video of CA45FS Goyen Replacement Dust Collector Pulse Valve:

Spare part pictures of CA45FS Reverse Pulse Jet Solenoid Valve:

CA45FS 1.5" Flange Type Pulse Solenoid Valve For Dust Collector 1

Construction:
1. Body: Diecast Aluminium
2. Ferrule: 304 SS
3. Armature: 430FR SS
4. Seals: Nitrile or Viton (reinforced)
5. Spring: 304 SS
6. Screws: 302 SS
7. Outlet Slide Seals: EPDM or Viton
8. Diaphragm Seat: PA-6 (standard), Viton coated mild steel

Features:
1. Range of sizes and configurations for flexibility in system specification.
2. Engineered and tested for optimal performance and durability.
3. Reduced number of valve fittings necessary.
4. Solenoid coils available in standard AC and DC voltages.
5. Complies with current regulations.
6. Spare parts kits readily available.

Five tips for extending the life of Goyen type FS series flange connection pulse jet valve for dust collector bag filter:

1. First ensure that the voltage of the dust collector pulse jet valve is stable when in use.

2. The air supply pressure of the dust collector must be too low or the dust source is unstable. Before use, it is necessary to check the wiring line of the dust removal trouble regularly.

3. Replace the defective dust collector pulse jet valve parts in time. In the environment with temperature difference, the dust collector pulse jet valve should be used with the oil water separator.

4. The newly installed dust collector first cleans the solder joint impurities in the air bag.

5. Ensure that the clean air temperature of the valve body entering the dust collector pulse jet valve is not lower than -5 °C.
