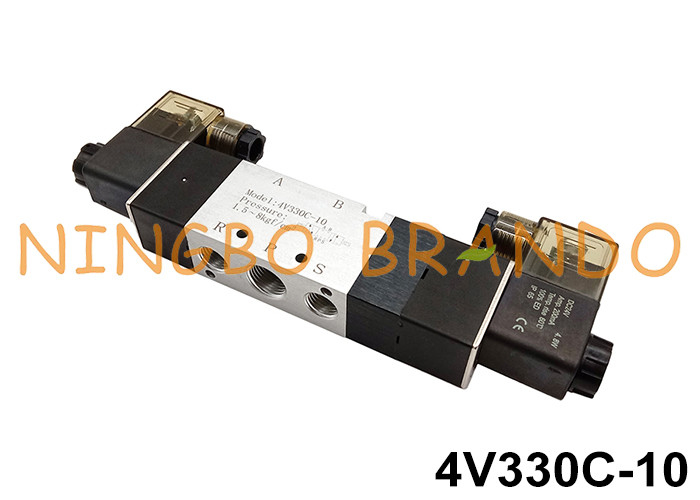

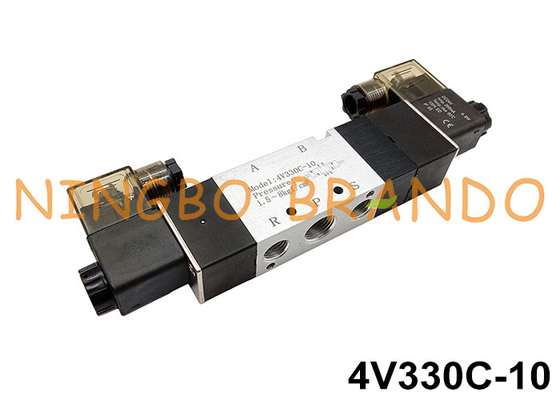

Name: 4V330C-10 Pneumatic Solenoid Valve 5/3 Way 4V300 Series 3/8''
Brand: BRANDO
SKU: 4V330C-10
Rating: 4.8 (131 reviews)

Home Products Pneumatic Solenoid Valve

4V330C-10 Pneumatic Solenoid Valve 5/3 Way 4V300 Series 3/8''

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	4V330C-10

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Solenoid Valve	Fluid:	Air
Port Size:	In=Out=3/8'', Exhaust=1/4''	Valve Type:	5 Port 3 Position
Operating Pressure:	0.15 To 0.8 MPa	Proof Pressure:	1.2MPa
Body Material:	Aluminum Alloy	Coil Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:	4V330C-10 Pneumatic Solenoid Valve , 4V300 Series 3/8'' Pneumatic Solenoid Valve , AirTAC 4V330C-10

4V330C-10 Pneumatic Solenoid Valve 5/3 Way 4V300 Series 3/8''

AirTAC Type pneumatic solenoid valve internal pilot operated with aluminum alloy body. Its port size, material, color, connection interfaces can be customized. This is necessary to meet a wide range of requirements, such as medical use, food processing, dusty environments, explosive environments etc. The valve ports connect to this central cylinder. By moving the spool through the cylinder, the valve ports are connected or blocked. Furthermore, the valve can be direct operated or pilot operated. With direct operation, the actuator is directly connected to the spool. With pilot operation, the valve uses the inlet pressure to help move the spool. The valve contains a small internal pneumatic cylinder that actuates the spool. The filling and emptying of this cylinder is controlled by the actuator, for example a solenoid.

AirTAC Type 4V330C-10 pneumatic solenoid valve is a 5/3 pneumatic valve with five ports, three positions and two solenoid coils. It is electrically controlled and is usually used to control a cylinder.

The 4V300 series has the following three types:
4V310-10 is a 5/2 pneumatic valve with 1 solenoid coil;
4V320-10 is a 5/2 pneumatic valve with 2 solenoid coils;
4V330-10 is a 5/3 pneumatic valve with 2 solenoid coils.

Technical Data of 4V300 Series Solenoid Valve:

Model	4V310-08	4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10	4V320-10	4V330C-10 4V330E-10 4V330P-10
Fluid	Air (to be filtered by 40 μm filter element)
Acting	internal pilot or external pilot
Port Size	in=out=exhaust=1/4''			in=out=3/8'', exhaust=1/4''
Orifice Size	4V310-10, 4V320-10: 28.0mm² (Cv=1.65) 4V330C-10: 21.3mm² (Cv=1.25)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Main Dimension of 4V330C-10 Solenoid Valve:

4V330C-10 Pneumatic Solenoid Valve 5/3 Way 4V300 Series 3/8'' 0

Video of 4V330C-10 Solenoid Valve:

Production Video of Pneumatic Valve:
