| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | CRB2BS15-180S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Rotary Actuator | Vane Type: | Single Vane, Double Vane |
|---|---|---|---|
| Shaft Type: | Single Shaft, Double Shaft | Bore Size: | 10mm, 15mm, 20mm, 30mm, 40mm |
| Swivel Angle: | 90°, 100°, 180°, 270° | Port Size: | M3x0.5, M5x0.8 |
| Fluid: | Air | Proof Pressure: | 1.5 MPa |
| High Light: | SMC Rotary Actuator Pneumatic,SMC Vane Type Rotary Actuator,SMC CRB2BS15-180S |
||

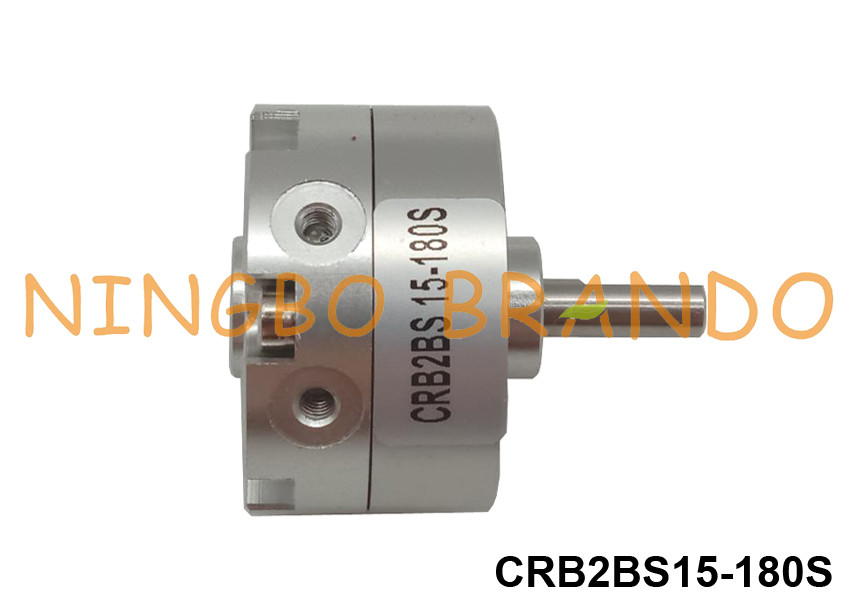

CRB2BS15-180S SMC Type Rotary Actuator Pneumatic Cylinder Vane Type
CRB2 Series, single or double vane, rotary actuator is available in 10, 15, 20, 30 and 40 bore. The single vane style uses specially designed seals and stoppers which enable this compact type actuator to rotate up to 270 degrees. Double vane type is standardized for 90 and 100 degrees. The lightweight design features a compact body with a built-in angle adjuster unit and auto switch unit. Rotating angle can be easily checked using the chamfered position of the shaft. (Only for CDRB with auto switch).
Ordering Code of CBR2 series Rotary Actuator:
Product Video of CRB2BS15-180S Rotary Actuator:
Specifications of CBR2 series Rotary Cylinder:
Single Vane:
Double Vane:
Chamfered Position and Rotation Range:
