| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 4V230C-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Pneumatic Solenoid Valve | Working Fluid: | Air (to Be Filtered By 40 μm Filter Element) |
|---|---|---|---|
| Valve Type: | 5 Way 3 Position | Port Size: | In=Out=1/4'', Exhaust=1/8'' |
| Operating Pressure: | 0.15 To 0.8 MPa (21 To 114 Psi) | Proof Pressure: | 1.2MPa (175psi) |
| Body Material: | Aluminum Alloy | Coil Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | AirTAC Solenoid Valve,4V230C-08 Solenoid Valve,4v230c-08 airtac |
||

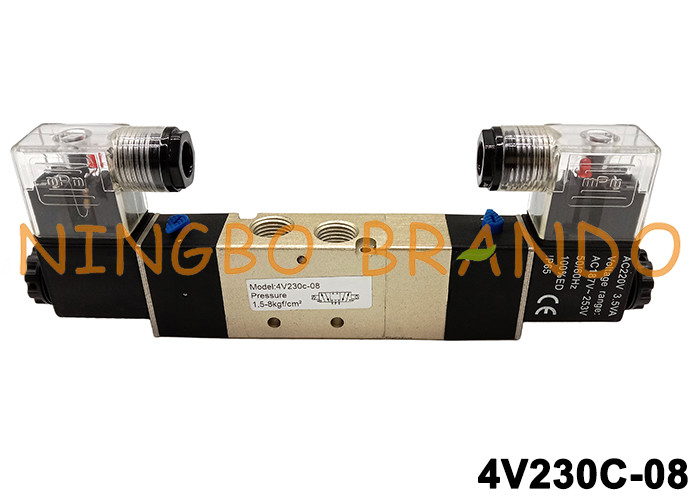

AirTAC Type PT1/4 4V230C-08 Solenoid Valve 220V AC 24V DC 5/3 Way
Solenoid valves are an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.
Valves can be designated as internally piloted or externally piloted. Externally piloted valves use an external source of air pressure. Internally piloted use an internal source of air pressure.
Solenoid valves are controlled by the action of the solenoid and typically control the flow of water or air as a switch. If the solenoid is active (current is applied), it opens the valve. If the solenoid is inactive (current does not exist) , the valve stays closed.
Technical Data of 4V200 Series Solenoid Valve:
|
Model
|
4V210-06
|
4V220-06
|
4V230C-06
4V230E-06
4V230P-06
|
4V210-08
|
4V220-08
|
4V230C-08
4V230E-08
4V230P-08
|
|
Fluid
|
Air (to be filtered by 40 μm filter element)
|
|||||
|
Acting
|
internal pilot or external pilot
|
|||||
|
Port Size
|
in=out=exhaust=1/8''
|
in=out=1/4'', exhaust=1/8''
|
||||
|
Orifice Size
|
4V210-08, 4V220-08: 17.0mm² (Cv=1.0)
4V230C-08: 13.6mm² (Cv=0.8)
|
|||||
|
Vlave Type
|
5 way 2 position
|
5 way 3 postion
|
5 way 2 position
|
5 way 3 position
|
||
|
Operating Pressure
|
0.15 to 0.8 MPa (21 to 114 psi)
|
|||||
|
Proof Pressure
|
1.2MPa (175psi)
|
|||||
|
Temperature
|
-20 to +70℃
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Max Frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
||
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Main Dimension of 4V230C-08 Solenoid Valve:
Production Video of Pneumatic Valve:
