Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | M25 |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic Bags, Cartons, Pallet |
Delivery Time: | 4-7 Days |
Payment Terms: | L/C, T/T, Western Union, Paypal, MoneyGram |
Supply Ability: | 200000 pcs per month |
Product Name: | M25 Diaphragm Repair Kit | Diaphragm Material: | NBR (Nitrile) |
---|---|---|---|
Mounting Hole Size: | φ6.5mm | Diaphragm Width: | 80mm |
Diaphragm Length: | 73mm | Center Distance: | 78mm |
Bleed Hole: | 1 | Spring: | 1 |
Packaging: | Individual Plastic Bag Sealed | Suitable Valves: | FP/FM20, FP/FM25, DP/DM20, DP/DM25, EP/EM25, SQP/SQM20, SQP/SQM25, FDP/FDM20, FDP/FDM25 |
High Light: | M25 Diaphragm Repair Kit,1'' Diaphragm Repair Kit,turbo m25 diaphragm |

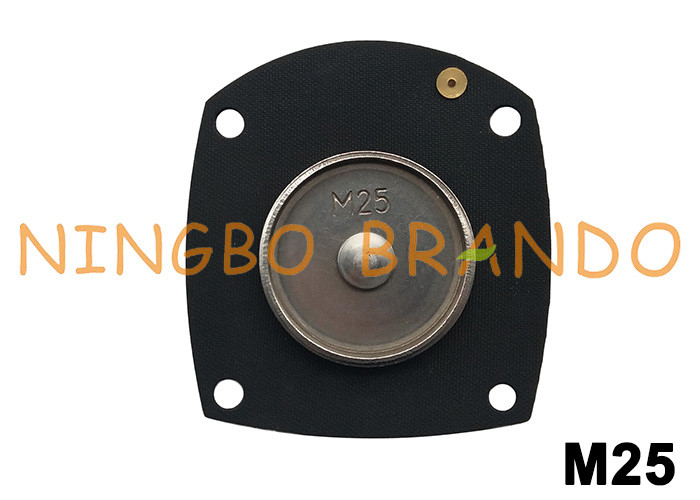

M25 1'' Diaphragm Repair Kit For FP25 FM25 DP25 Pulse Jet Valve
¾" & 1" Turbo Diaphragm Repair Kit consisting of a single diaphragm (M25) plus spring (TM0L10G)
Fluids: | Non-lubricated filtered air. |
Operating temperature: | Nitrile diaphragm -20°C; +80°C Viton diaphragm -20°C; +200°C |
Operating pressure: |
Between 0.5 and 7.5 bar |
M25 or M25V Diaphragm Repair Kit is used in Turbo 3/4'' & 1'' FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP20, EM20, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25 pulse jet valves. The M25 Diaphragm Repair Kit is the Nitrile Kit, for use with standard temperature applications. The M25V Diaphragm Repair Kit is the Viton Kit, for use with high temperature applications.
We produced series Turbo type diaphragm repair kits, it is nice replacement for Turbo diaphragm.
Ordering code: M20, M25, M40, M50, M55, M75
YouTube video of M25 Diaphragm Repair Kit For 3/4'' & 1'' Turbo Pulse Valve:
Main dimension of M25 Turbo 3/4'' & 1'' Pulse Valve Diaphragm Kit:
Details display of Repair Kit Diaphragm M25 For 3/4'' &1'' Turbo Valve:
Available Models of Diaphragm Valve Repair Kits For Turbo Pulse Valves:
Tips: The related solenoid coils and armature assembly are all supplied.
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
