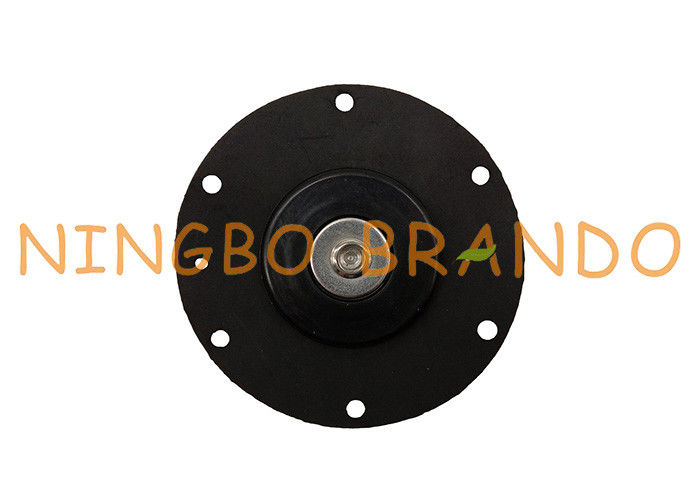

K3502 M1591 1-1/2'' Dust Filter Pulse Jet Valve Buna Diaphragm

K3502 M1591 1-1/2'' Dust Filter Pulse Jet Valve Buna Diaphragm

The diaphragm in the valve divides the electromagnetic pulse valve into two chambers, the front and the back. When the compressed air is connected and enters the back chamber through the throttle hole, the pressure of the back chamber will press the diaphragm against the output port of the valve, and the electromagnetic pulse valve is in the "closed" state. The electric signal of the pulse injection controller makes the armature of the electromagnetic pulse valve move, the vent hole of the rear air chamber opens, the rear air chamber grabs quickly, the diaphragm moves backward, the compressed air is injected through the output port of the valve, and the pulse valve is in "open" state. The compressed air is ejected from the valve in an instant to form a jet air flow.

Goyen Type Diaphragm Repair Kit:

Deference number:

Dimension Diagram:

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
