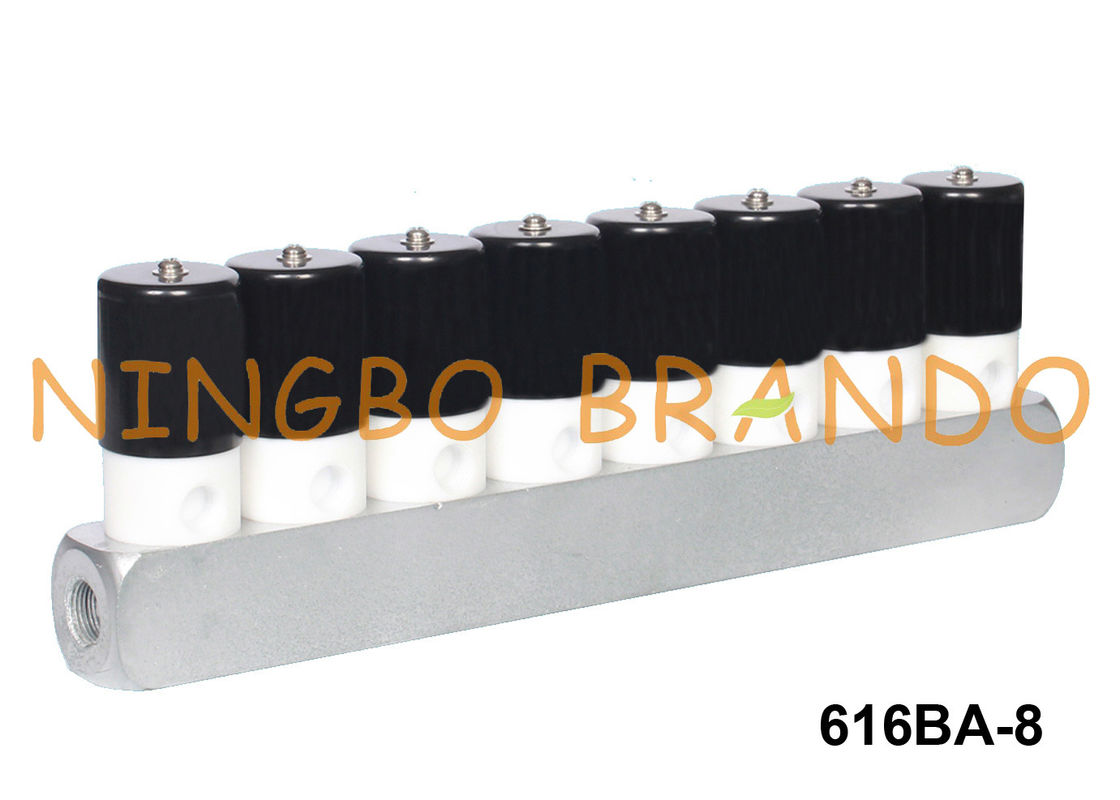

8 Group PTFE Diaphragm Isolation Solenoid Valve Manifold 12V 24V

Large Image : 8 Group PTFE Diaphragm Isolation Solenoid Valve Manifold 12V 24V

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	616BA-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Function:	2 Way, Normally Closed	Operation:	Direct Acting
Port Size:	1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''	Orifice Size:	3mm, 6mm
Voltages:	12VDC, 24VDC, 110VAC, 220VAC	Fluids:	Corrosive Liquid, Acid And Alkali
Valve Body Material:	PTFE ()	Seal Material:	PTFE ()
Working Pressure Range:	0 To 0.3 MPa
Highlight:	PTFE Solenoid Valve , Isolation Solenoid Valve , Manifold Solenoid Valve

8 Group PTFE Diaphragm Isolation Solenoid Valve Manifold 12V 24V

Product Features:

1. Working Medium: Corrosive Liquid, Acid and Alkali
2. Function: 2 Way, Normally Closed
3. Operation: Direct Acting
4. Working Pressure: 0 to 0.3 MPa
5. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 3mm, 6mm
7. Body Material: PTFE ()
8. Seal Material: PTFE ()
9. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Isolation Solenoid Valve:

Model	Port Size	Orifice Size	Cv	Min Pressure	Max Pressure		Seal Material	Body Material
					AC	DC
616BA301	1/8''	3mm	0.1	0 MPa	0.3MPa	0.3MPa	PTFE	PTFE
616BA602	1/4''	6mm	0.28		0.15MPa	0.15MPa
616BA603	3/8''	6mm	0.28
616BA604	1/2''	6mm	0.28
616BA605	3/4''	6mm	0.28
616BA606	1''	6mm	0.28

Main Dimension of Isolation Solenoid Valve:

Brando Solenoid Valve Factory Production Video:

More PTFE () Body Solenoid Valves for you to choose:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
