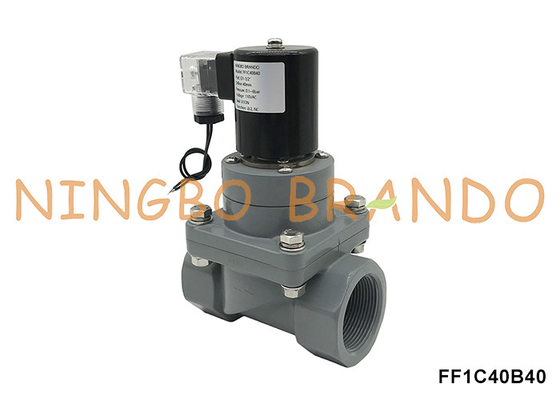

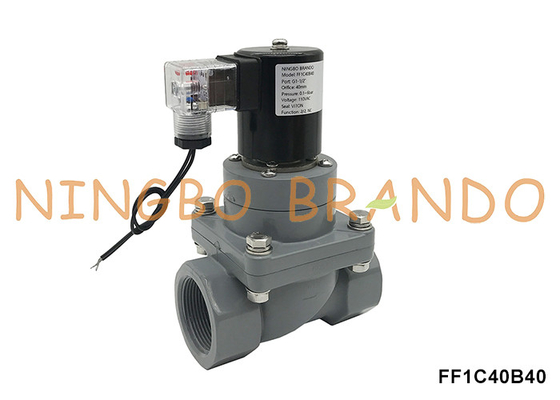

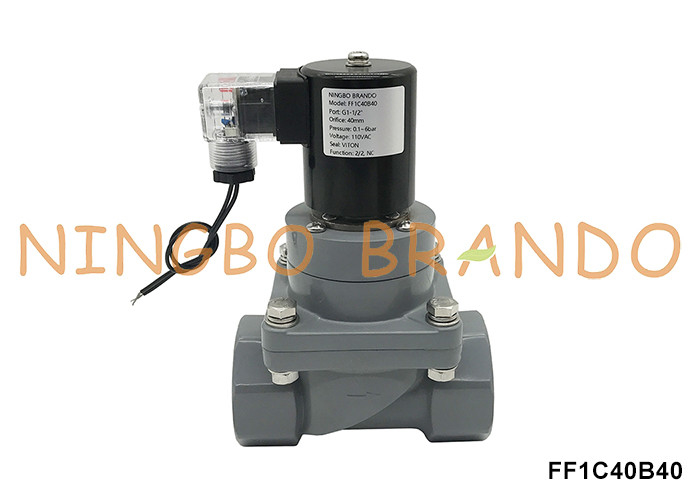

1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V

1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V

  • 1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V
  • 1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V
  • 1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V
1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: FF1C40B40
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 5 to 7 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: Anti Corrosive Solenoid Valve Function: 2 Way Normally Closed
Port Size: 1-1/2'' Orifice Size: 40mm
Body Material: CPVC Seal Material: EPDM, FKM
Working Fluids: Chemical, Acid, Alkali, Corrosive Liquid, Etc Working Pressure: 0.01 To 0.6 MPa
Action: Piston Pilot Operated Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:

CPVC Solenoid Valve 1-1/2''

,

CPVC Solenoid Valve DN40

,

Anti Corrosion Solenoid Valve

1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V



Product Features:

1. Working Medium: Chemical, Acid, Alkali, Corrosive Liquid, etc

2. Working Pressure: 0.1 to 6 bar

3. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''

4. Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm

5. Body Material: CPVC

6. Seal Material: EPDM, FKM

7. Operation: Piston Pilot Operated

8. Function: 2 Way Normally Closed

9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)



Technical Data:

Model No
Orifice Size
Port Size
Cv
Working Pressure
Body
Seal
Function
Voltage
FF1C15B04
15mm
1/2''
4
0.1 to 6 bar
CPVC
EPDM
FKM
2 Way NC
12VDC
24VDC
24VAC
110VAC
220VAC
FF1C20B06
20mm
3/4''
5.5
FF1C25B25
25mm
1''
13
FF1C32B32
32mm
1-1/4''
17
FF1C40B40
40mm
1-1/2''
25
FF1C50B50
50mm
2''
40


Main Dimension:

1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V 0
Model No
Port
A
B
C
D
E
F
FF1C15B04
1/2''
74
132
92
63.5
63.5
16
FF1C20B06
3/4''
80
137
92
63.5
63.5
19
FF1C25B25
1''
100
147
92
74
74
26
FF1C32B32
1-1/4''
120
171
94
94
94
30
FF1C40B40
1-1/2''
130
180
94
94
94
32.5
FF1C50B50
2''
175
227
109
155
155
38



Our Production:

1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V 1



More Anti Corrosive Solenoid Valves:

1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V 2 1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V 3 1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V 4 1-1/2'' DN40 Anti Corrosion CPVC Solenoid Valve For Chemical Acid 220V 24V 5
UPVC Solenoid Valve CPVC Solenoid Valve PTFE Solenoid Valve PTFE Solenoid Valve



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
