| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-Z-40S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1-1/2''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | DMF-Z-40S Pulse Valve,Dust Collector Pulse Valve,SBFEC Type DMF-Z-40S |
||

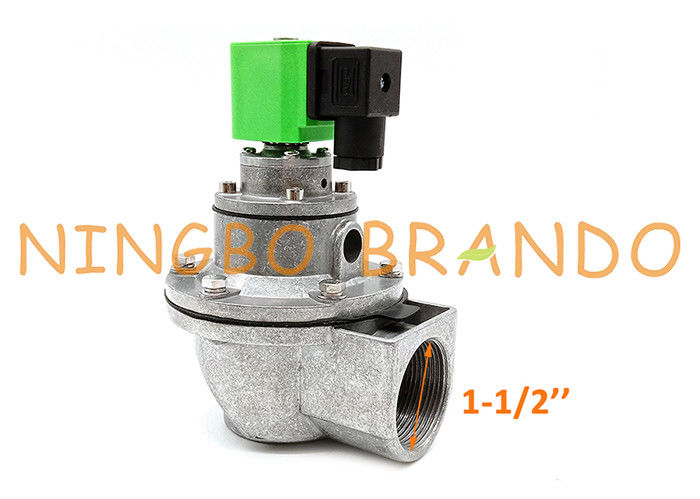

DMF-Z-40S Right Angle 1.5 Inch Diaphragm Dust Collector Pulse Valve
Right Angle Type : The DMF-Z solenoid/diaphragm valve is kind of vertical-angle valve, with an included angle of 90° between inlet and outlet. It simplifies the connection between gas bag and blowing tube of a dust collector. It can provide stronger airflow and meet dust removing requirements.
Submerged Type : The DMF-Y solenoid/diaphragm valve is kind of submerged valve (namely, insert valve), which is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.
Dresser Nut Type : The Solenoid/Diaphragm valve pulse jet valve is kind of vertical-angle valve similar to the z-series valves, suitable for connection between gas bag and blowing tube of a dust collector. It has fixed nuts for installation purposes at the inlet and outlet end, for easier installation and application.
Through Type : The DMF-T solenoid/diaphragm valve is kind of through valve, with an included angle of 180° between the inlet and outlet (central line of both inlet and outlet are the same straight line). Also, the inlet is connected to a gas storage tank, while its outlet is connected to a blowing tube.
Technical Data of SBFEC Type DMF Series Right Angle Pulse Jet Valve:
|
Model
|
Nominal diametrer
|
Number of diaphragms
|
Inlet
|
Outlet
|
Weight (kg)
|
|
|
mm
|
inch
|
|||||
|
DMF-Z-20
|
Φ20
|
3/4''
|
1
|
G3/4''
|
G3/4''
|
0.65
|
|
DMF-Z-25
|
Φ25
|
1'''
|
1
|
G1''
|
G1''
|
0.8
|
|
DMF-Z-40S
|
Φ40
|
1 1/2''
|
2
|
G1 1/2''
|
G1 1/2''
|
1.4
|
|
DMF-Z-50S
|
Φ50
|
2''
|
2
|
G 2''
|
G2
|
2.4
|
|
DMF-Z-62S
|
Φ62
|
2 1/2''
|
2
|
G2 1/2''
|
G2 1/2''
|
3.5
|
|
DMF-Z-76S
|
Φ76
|
3''
|
2
|
G3''
|
G3''
|
4.3
|
|
DMF-Z-90S
|
Φ90
|
3 1/2''
|
2
|
G3 1/2''
|
G3 1/2''
|
5.75
|
|
DMF-Z-102S
|
Φ102
|
4''
|
2
|
G4''
|
G4''
|
7.3
|
|
DMF-ZL-B
|
Φ20
|
3/4''
|
1
|
G3/4''
|
Φ27
|
0.75
|
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
