| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | SV122 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Miniature Solenoid Valve | Rated Voltage: | 4.5V, 6V, 12V |
|---|---|---|---|
| Power Consumption: | ≤1.35, ≤1.44, ≤1.2, ≤1.404 | Working Current: | ≤300, ≤320, ≤200, ≤117 |
| Working Voltage Range: | 3.5-5.0V, 2.8-5.0V, 4.8-7.2V, 10.8-13.2V | DC Resistance: | 20±10%, 33±10%, 165±10% |
| Leakage: | ≤15mmHg / Min | Exhaust Speed: | 500CC /＜6S |
| High Light: | Micro Solenoid Valve 12V,Micro Solenoid Valve Air,Micro Electric Solenoid Valve |
||

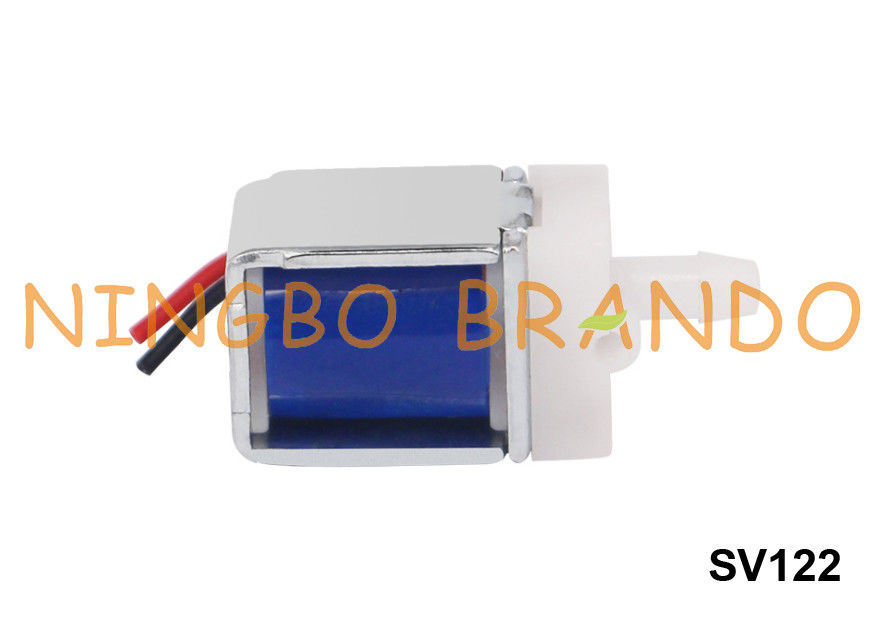

2 Way Normally Closed Plastic Micro Air Solenoid Valve 6V 12V DC
Miniature Solenoid Valves Application Examples:
1. Medical Equipments: Blood Pressure Monitor, Air Pressure Massage, Patient Monitor, etc.
2. Massage Health Care Equipments: Foot Massage, Massage Chair, Head and Eye Massage, Massage Bed, etc.
3. Household Appliances: Anti-snore Apparatus, Memory Pillow, Coffee Machine, Water Purifier, etc.
4. Other Applications: Kitchen and Bathroom Parts, Body Beauty Cares, Gas Detection and Analysis, Agricultural Application, and Scent Diffuse Machine, etc.
Dimension and Data of Miniature Plastic Solenoid Valve:
 |
|
|
| Model |
Rated Voltage |
Working Current |
Power Consumption |
Working Voltage Range |
DC Resistance |
Leakage | Exhaust Speed | Service Life |
| SV122-4.5 | 4.5 | ≤300 | ≤1.35 | 3.5-5.0V | 20±10% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV122-4.5 | 4.5 | ≤320 | ≤1.44 | 2.8-5.0V | 16±2 | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV122-6 | 6 | ≤200 | ≤1.2 | 4.8-7.2V | 33±10% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV122-12 | 12 | ≤117 | ≤1.404 | 10.8-13.2V | 165±10% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
Brando Solenoid Valve Factory Production Video:
More Miniature Plastic Solenoid Valves for you to choose:
| 2 Way Miniature Solenoid Valve | |||
|
|
|
|
|
|
|
|
| 3 Way Miniature Solenoid Valve | ||
|
|
|
|
|
|
| Combination | ||
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
