Name: 1/8'' 1/4'' 2 Way Normally Open Solenoid Valve For Screw Air Compressor
Brand: Brando
SKU: VXD22
Rating: 4.5 (192 reviews)

Home Products Air Compressor Automatic Drain Valve

1/8'' 1/4'' 2 Way Normally Open Solenoid Valve For Screw Air Compressor

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	VXD22

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability:	300000 sets per month

Contact Now

Detailed Product Description

Medium:	Compressed Air, Water, Oil, Fluid, Gas, Vaccum	Port Size:	1/8'', 1/4''
Orifice Size:	1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm	Function:	2 Way, Normally Open
Body Material:	Brass	Seal Material:	NBR, FKM, EPDM
Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC	Working Pressure Range:	0 To 3 MPa
High Light:	2 Way Normally Open Solenoid Valve , Solenoid Valve For Screw Air Compressor , 1/4'' Normally Open Solenoid Valve

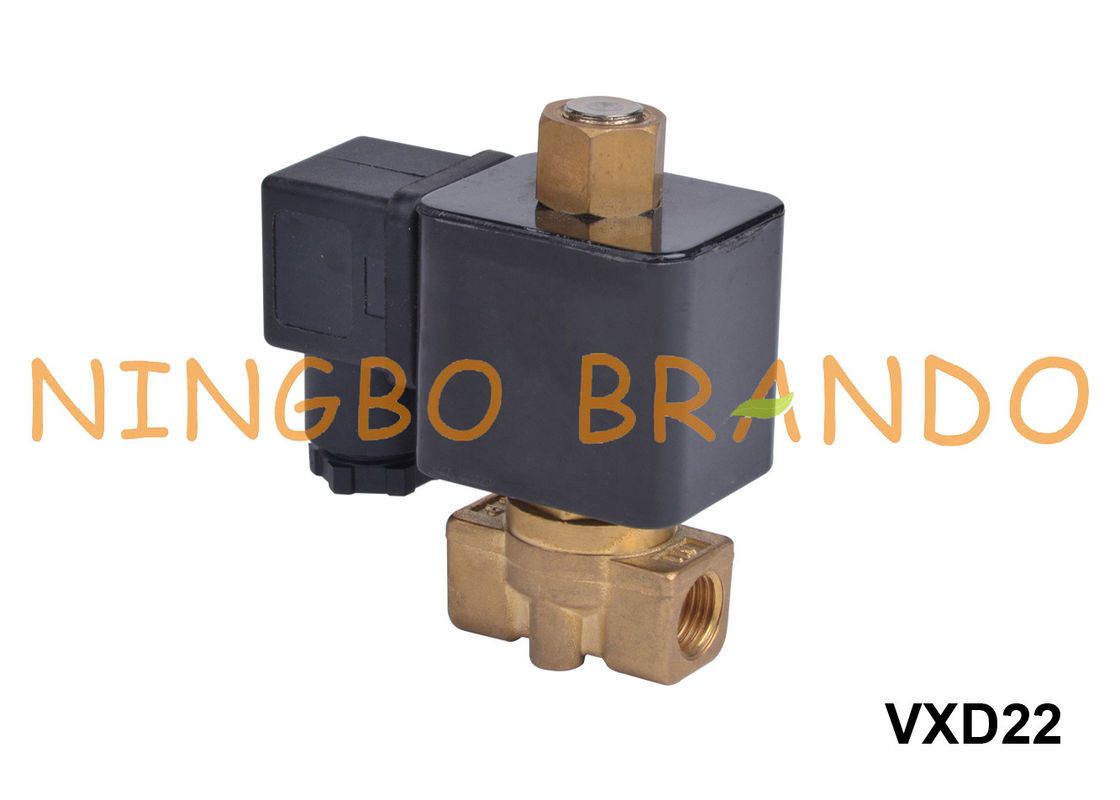

1/8'' 1/4'' 2 Way Normally Open Solenoid Valve For Screw Air Compressor

BRANDO is a Worldwide distributor and supplier of Air Compressor Solenoid Valves manufactured and designed specifically to fit your Industrial Air Compressor System in Europe, USA, Africa, Asia, Middle East and other countries worldwide.

BRANDO is your source for to find replacement Compressor Solenoid Valves to keep your air compressor machine running efficiently, effectively and operating at full capacity.

A solenoid is a simple form of an electromagnet consisting of a coil of insulated copper wire. A solenoid valve is an electromechanical valve frequently used to control the flow of liquid or gas.

Technical Data of Solenoid Valve:

2 Way Solenoid Valve:

Orifice Size (mm)	Port Size (Inch)	Presure Difference (MPa)	Ambient Temperature (℃)	Medium Temperature (℃)	Body Material	Power (W)
1.5mm	06-1/8'', 08-1/4'', B-Sub-base	0 to 3	-20 to +50 ℃	NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃	Brass	12
2.0mm		0 to 1.6
2.5mm		0 to 1.1
3.0mm		0 to 0.8
4.0mm		0 to .6

3 Way Solenoid Valve:

Orifice Size (mm)	Port Size (Inch)	Presure Difference (MPa)	Ambient Temperature (℃)	Medium Temperature (℃)	Body Material	Power (W)
1.0mm	06-1/8'', 08-1/4'', B-Sub-base	0 to 2	-20 to +50 ℃	NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃	Brass	12
1.5mm		0 to 1.6
2.0mm		0 to 1.0
2.5mm		0 to 0.6
3.0mm		0 to 0.4
4.0mm		0 to 0.2
