| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | FF1U15B04 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Anti Corrosion Solenoid Valve | Port Size: | 1/2'' |
|---|---|---|---|
| Orifice Size: | 15mm | Body Material: | UPVC |
| Seal Material: | EPDM, FKM | Working Media: | Chemical, Acid, Alkali, Corrosive Liquids |
| Working Pressure: | 0.01 To 0.6 MPa | Function: | 2 Way Normally Closed |
| Operation: | Pilot Piston Operated | Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | UPVC Solenoid Valve 1/2'',Anti Corrosive Solenoid Valve,Anti Corrosion Solenoid Valve |
||

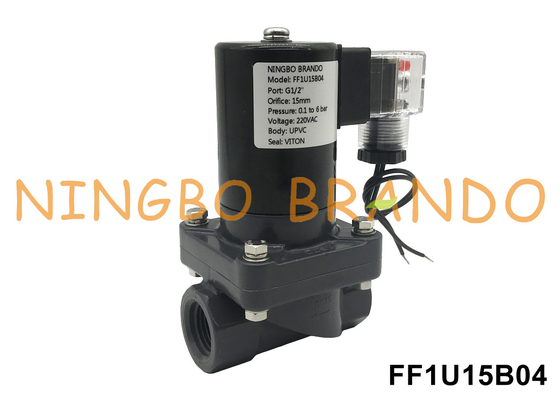

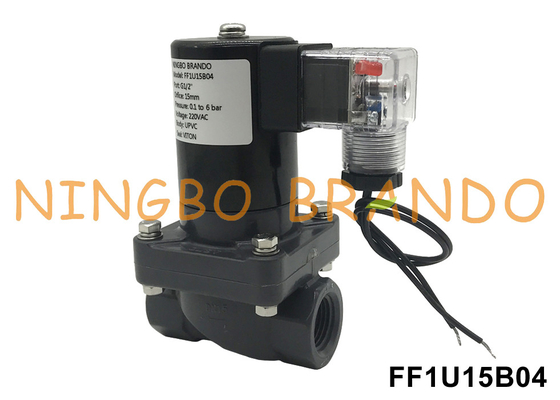

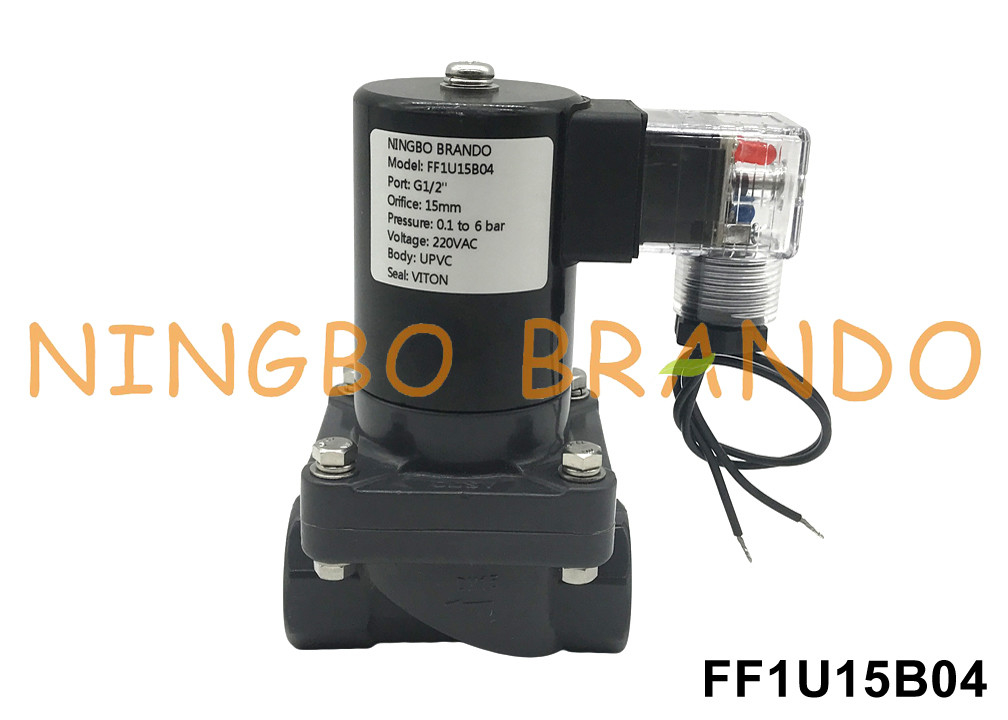

1/2'' Anti Corrosion UPVC Solenoid Valve For Chemical Acid Alkali 24V 110V 220V
Product Features:
1. Working Medium: Chemical, Acid, Alkali, Corrosive Liquids
2. Body Material: UPVC
3. Seal Material: EPDM, FKM
4. Port Size: 1/2'', 3/4'', 1''
5. Orifice Size: 15mm, 20mm, 25mm
6. Operation: Piston Pilot Operated
7. Function: 2 Way Normally Closed
8. Working Pressure: 0.1 to 6 bar
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
Model No
|
Orifice Size
(mm)
|
Port Size
(inch)
|
Cv
|
Working Pressure
(bar)
|
Body Material
|
Seal Material
|
Function
|
|
FF1U15B04
|
15
|
1/2''
|
4
|
0.1 to 6
|
UPVC
|
EPDM
FKM
|
2 Way NC
|
|
FF1U20B06
|
20
|
3/4''
|
5.5
|
0.1 to 6
|
|||
|
FF1U25B25
|
25
|
1''
|
13
|
0.1 to 6
|
|||
|
FF1U32B32
|
32
|
1 1/4''
|
17
|
0.1 to 6
|
|||
|
FF1U40B40
|
40
|
1 1/2''
|
25
|
0.1 to 6
|
|||
|
FF1U50B50
|
50
|
2''
|
40
|
0.1 to 6
|
Main Dimension:
|
Model No
|
Port
|
A
|
B
|
C
|
D
|
E
|
|
FF1U15B04
|
1/2''
|
74
|
132
|
92
|
63.5
|
63.5
|
|
FF1U20B06
|
3/4''
|
80
|
137
|
92
|
63.5
|
63.5
|
|
FF1U25B25
|
1''
|
100
|
147
|
92
|
74
|
74
|
|
FF1U32B32
|
1 1/4''
|
120
|
171
|
94
|
94
|
94
|
|
FF1U40B40
|
1 1/2''
|
130
|
180
|
94
|
94
|
94
|
|
FF1U50B50
|
2''
|
172
|
225
|
94
|
155
|
155
|
