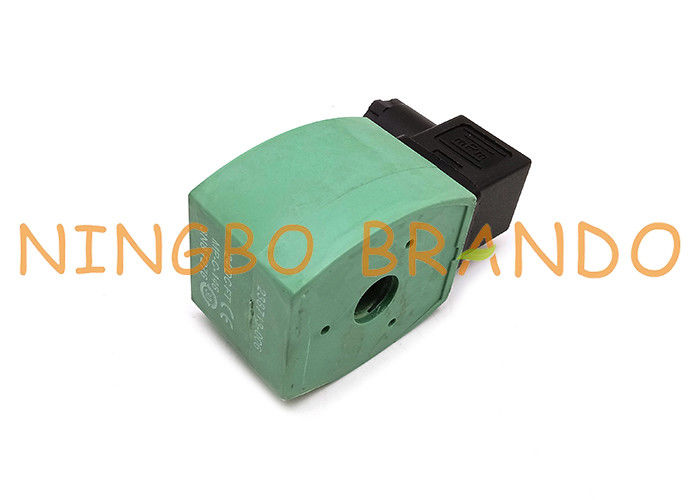

14mm Hole MP-C-146 8353 Series Redhat Solenoid Valve Coil

14mm Hole MP-C-146 8353 Series Redhat Solenoid Valve Magentic Coil

Most of the coils suitable for solenoid pulse valves are currently used on the pulse jet valve of the dust collector. The product is sealed with bmc thermosetting material, 180 grade high temperature enameled wire, and td4c high quality royal iron. The shape is beautiful and bright. High quality and efficient.

The main parameters of the coil are as follows: internal aperture 14mm, height 39.3mm, power: AC21VA, DC18W.

What is a solenoid?
A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). When an electrical current is introduced, a magnetic field forms around the coil which draws the plunger in. More simply, a solenoid converts electrical energy into mechanical work.

The coil is made of many turns of tightly wound copper wire. When an electrical current flows through this wire, a strong magnetic field/flux is created.
The housing, usually made of iron or steel, surrounds the coil concentrating the magnetic field generated by the coil.
The plunger is attracted to the stop through the concentration of the magnetic field providing the mechanical force to do work.

Technical parameter of ASCO type pulse solenoid valve coils:

Main dimension of 14mm inside hole size ASCO green pulse jet valve coils:

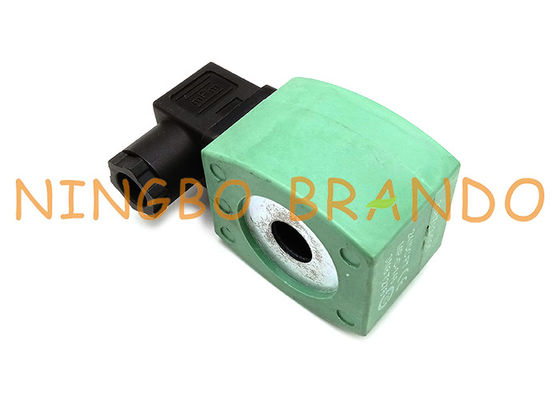

Detailed pictures of height 39.3mm pulse diaphragm valve accessories coils:

Production display of AC220V/24VDC DIN type pulse solenoid valve coils:

The bag filter with pulse solenoid valve coils:

The bag filter is mainly based on the mechanism of inertial bumping, sieving, and interception between the filter bag and the dust particles to complete the gas-solid separation. The filter wind speed, filter function, backflushing method and cleaning criteria of this type of dust collector have a great influence on the dust removal power and resistance. Therefore, in the dust collector planning, in addition to selecting the appropriate filter material according to the characteristics of the smoke, to determine the reasonable filtration wind speed, we must pay attention to the following points in the processing and production.

1. The reversing valve and its control equipment for atmospheric anti-suction or anti-bloom cleaning are necessary. It is necessary to start in place, the action is sensitive, the operation is simple, and it is tight and airtight when closed.

2. Pulse valve, solenoid valve and pulse control appearance are selected for pulse cleaning, which requires excellent function and sensitive action, and can be operated continuously for a long time.The pulse solenoid valve we produce uses a high-quality coil that guarantees one million blows and the coil is not burned out.

3. When the inner filter is selected, the upper hanging tissue and the lower flower plate should be centered to ensure that the filter bag satisfies the straightness and the flat belt distance; the filter bag hoisting tightness should be consistent, avoiding the transition deformation of the filter bag, affecting the dust collector Normal operation.

4. When the outer filter is selected, the outer surface of the cage bone supporting the filter bag is flat and lubricated. It is certainly not allowed to have sharp arched objects or corner burrs to avoid puncturing or excessively wear the filter bag, forming a short circuit of the airflow and reducing the dust removal power.

5. The connection between the filter bag and the flower board, it is necessary to consider the convenience of disassembly and assembly when changing the bag, but also to be tight and airtight, to avoid short circuit of airflow and reduce the dust removal power.

Pls contact us for more details!
