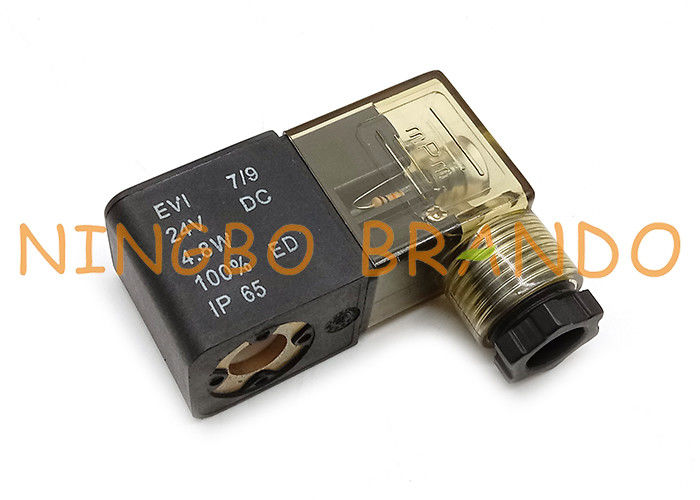

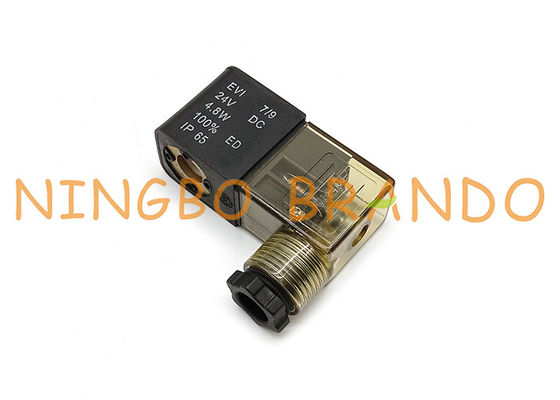

EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil

EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil

  •  EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil
  •  EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil
 EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB09029516
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Hole Size: 9.0mm Height: 29.5mm
Width: 22mm Voltage: AC220V, DC24V
Power: 4-8VA, 3-8W Connector: DIN43650B
Insulation Class: F, H Protection Class: IP65, IP67, IP68
Application: 4V Pneumatic Solenoid Valve
High Light:

EVI 7/9 Solenoid Valve Coil

,

Pneumatic Solenoid Valve Coil

,

4V Series Pneumatic Coil

  EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil

Type:Fittings
Hole Size:9.0mm
Height:29.5mm
Width:22.0mm
Voltage:AC220V, DC24V
Power:4 to 8VA, 4W
Connection Type:DIN43650B
Insulation class:F, H
Protection class:IP65, IP67, IP68
Application:4V series pneumatic solenoid valve



Dimension of Pneumatic Solenoid Valve Coil :

Dimension of Pneumatic Solenoid Valve Coil :



Technical Data:


Model
BB090029516
Hole size
9.0mm
Height
29.5mm
Width
22.0mm
Voltages
AC220V, DC24V
Power
4-8VA, 3-8W
Insulation class
F, H
Connection Type
DIN43650B
Application examples
4V Pneumatic Solenoid Valve





Details:



HOLE SIZE HEIGHT WIDTH
Hole Size 9.0mm Height 29.5mm Width 22.0mm





Solenoid Coil Production Line:

 EVI 7/9 9mm Hole DIN43650B 4V Series Pneumatic Solenoid Valve Coil 4



Attention:
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.



Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.



Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
