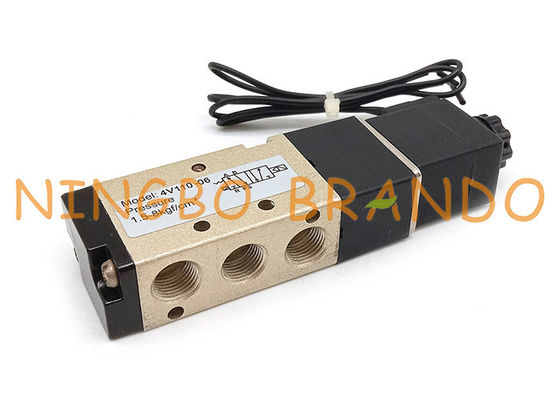

4V110-06 1/8 Inch 5/2 Way Air Control Pneumatic Solenoid Valve

4V110-06 1/8 Inch 5/2 Way Air Control Pneumatic Solenoid Valve

CONNECTING THE VALVES
Valves have three primary electrical connection methods: hard wired, modular wired, or digital communication. Many valves have a connector built in with removable flying leads or a DIN-style wiring connector.

Modular wiring is typically used with manifold-mounted valve configurations. This wiring usually consists of a D-sub connector embedded in the manifold base. This provides an efficient and clean integration option for large pneumatic systems.

Ethernet/IP and other digital communication protocols are becoming a popular way to replace individual discrete wires with a single cable. This is particularly effective when a large number of valves in a small space require activation. This can also reduce cost on the controller side of the system by using a single communication port instead of multiple output modules.

A variety of threaded ports or push-to-connect fittings are also available to attach pneumatic tubing to the valves. A 5-port (4-way), 2-position valve type is often the best choice for a pneumatic directional control application. Adding a manual operator feature and an indicator light on the electrical connection make maintenance easier, so these options should be considered.

Pneumatic valve is where air or an inert gas is the pneumatic drive force. These type of pneumatic valves control or manage the source air within an automated system. While frequently referred to as pneumatic valves, they can be actuated (operated) by manually, by pneumatic actuation (Air Pilot Valve), by solenoid actuation (Pneumatic Solenoid Valve), or by motorized actuation. Ultimately, they all serve the same purpose: they modulate or control the source air for an automated system.

Data of 4V100 Series Pneumatic Solenoid Valves:

Dimension of 4V110-06 Pneumatic Solenoid Valve:

Production Video of Pneumatic Solenoid Valve:

More Pneumatic Products for you to choose:

      Solenoid Operator                                 Manifold                                    Silencer                        Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
