| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4A210-06 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 1/8 Inch | Valve Type: | Single Solenoid 5 Port 2 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Working Pressure: | 0.15 To 0.8MPa(21-114psi) |
| Temperature: | -20 To +70℃ | Max. Frequency: | 5 Cycle/sec |
| Body Material: | Aluminum Alloy | Fluid: | Air (to Be Filtered By 40 μm Filter Element) |
| Application: | Automation | CV: | 0.78 |
| High Light: | 4A210-06 Air Valve,Pilot Pneumatic Air Valve,AirTAC Type 4A210-06 |
||

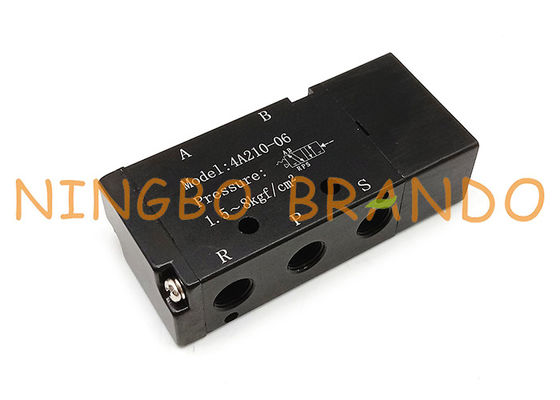

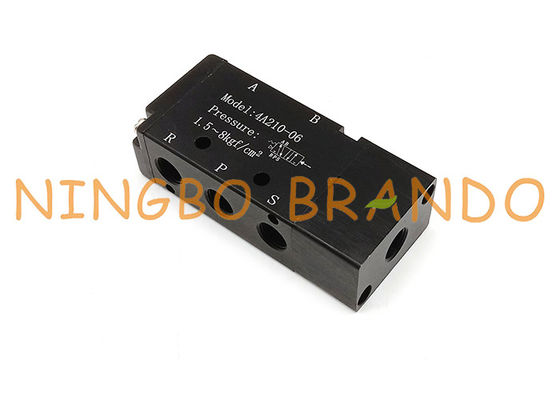

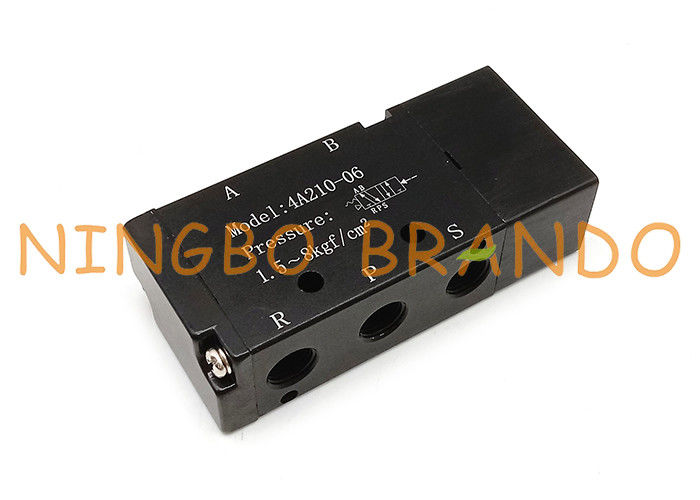

4A210-06 1/8'' 5 Position 2 Way Single Pilot Pneumatic Air Valve
Product Features:
1.Structure in sliding column mode: good tightness and sensitive reaction.
2.Three position air valves have three kinds of central function for your choice.
3.Double air control valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Integrate with the manifold to save installation space.
Technical Data:
| Model |
4A210-06 4A220-06 |
4A230C-06 4A230E-06 4A230P-06 |
4A210-08 4A220-08 |
4A230C-08 4A230E-08 4A230P-08 |
| Fluid | Air(to be filtered by 40 μ m filter element) | |||
| Acting | Exterior control | |||
| Port Size | In=Out=Exhaust=1/8'' | In=Out=1/4'', Exhaust=1/8'' | ||
| CV | 0.78 | 0.67 | 0.89 | 0.67 |
| Valve Type | 5 Port 2 Position | 5 Port 3 Position | 5 Port 2 Position | 5 Port 3 Position |
| Operating Pressure | 21~114psi(0.15~0.8MPa) | |||
| Temperature | -20~70℃ | |||
| Material of body | Alumium Alloy | |||
| Max. frequency | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
Dimension Diagram:
Brando Supply:
1.Solenoid Valve:
Pulse Jet Valve: Goyen Type Pulse Jet Valve, SBFEC Type Pulse Jet Valve, ASCO Type Pulse Jet Valve , Turbo Type Pulse Jet Valve.
Direct Acting Solenoid Valve:Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve and etc.
Refrigeration Solenoid Valve:Castel Type Solenoid Valve, Danfoss Type Solenoid Valve.
2.Repair Kit:Solenoid Coil, Solenoid Armature/Stem, Diaphragm Repair Kit and etc.
