| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | MP-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Working Medium: | Air (to Be Filtered By 40 μm Filter Element) | Valve Type: | 4 Way 2 Position |
|---|---|---|---|
| Port Size: | 1/4'' | Working Pressure Range: | 0.08 To 0.35 MPa |
| Body Material: | Aluminum Alloy | Seal Material: | Silicone |
| Wiring Form: | Lead Wire Or DIN43650 Connector | Voltages: | 12VDC, 24VDC |
| Highlight: | Oxygen Solenoid Valves,Medical Machine Solenoid Valves,Solenoid Valve 12V Oxygen Generator |
||

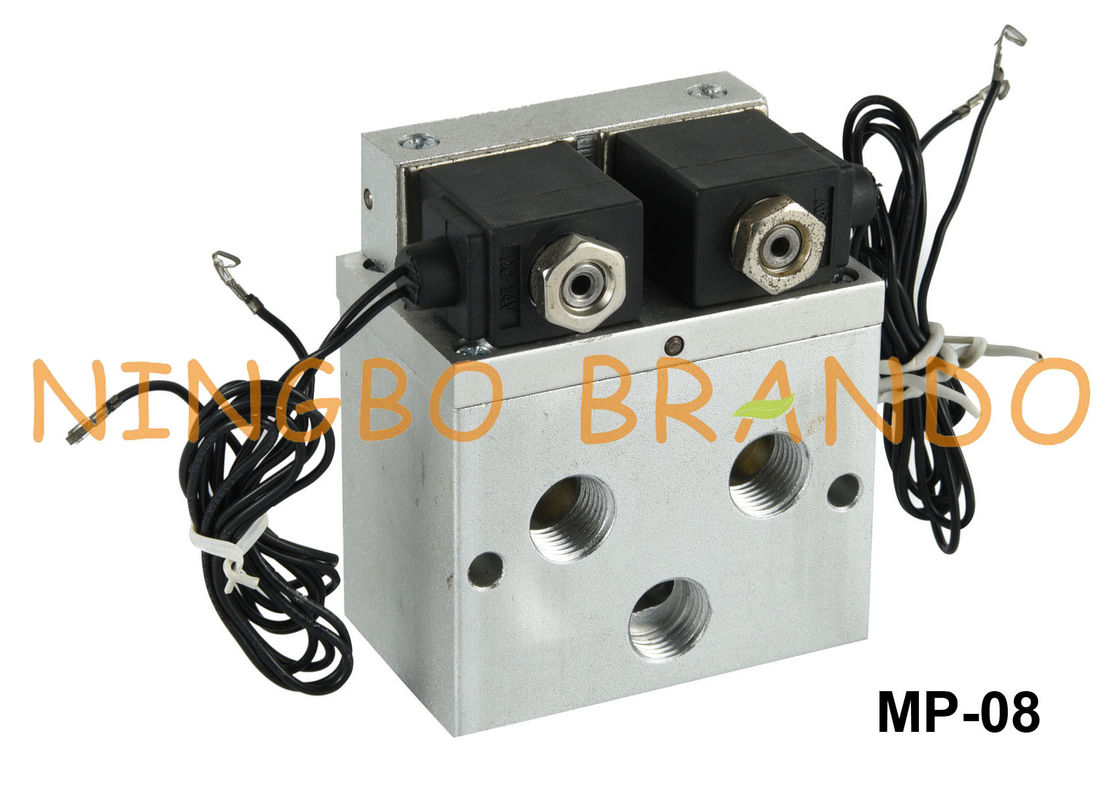

Medical Machine Oxygen Generator Solenoid Valves 12V 24V 1/4''
Product Features:
1. Low presure solenoid valve;
2. Aluminum alloy material valve body;
3. 2 position 4 way, Diaphragm pilot operated;
4. Working at low pressure from 0.08MPa to 0.35MPa, Sensitive to low pressure;
5. Vertical mounting direction and horizontal direction for option;
6. DIN43650 electricity connection and flying wire type for selectable;
7. Special fomular silicone ensure long serivce life.
Applications:
This solenoid valve used in the low pressure system, especially use for O2 Oxygen generator system of medical Industrial.
Technial Data of Oxygen Solenoid Valves:
| Model | MP-08 |
| Valve Type | 4 Way 2 Position |
| Working Medium | Air (to be filtered by 40 μm filter element) |
| Action | Internal Pilot Operated |
| Body Material | Aluminum Alloy |
| Seal Material | Silicone |
| Working Pressure Range | 0.08 to 0.35 MPa |
| Working Temperature Range | -5 to +80℃ |
| Coil Insulation Class | F Class, IP65 |
| Coil Voltage | 12VDC, 24VDC |
| Coil Power | 3W, 1.5W |
Dimension of Oxygen Solenoid Valve:
 |
|
|
|
