| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | FV-02 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Acting Type Controlled By Foot Normally Closed |
|---|---|---|---|
| Port Size: | 1/4'' | Valve Type: | 3 Way 2 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | Air Operated Foot Pedal,3 Way Pneumatic Foot Pedal,FV-02 |
||

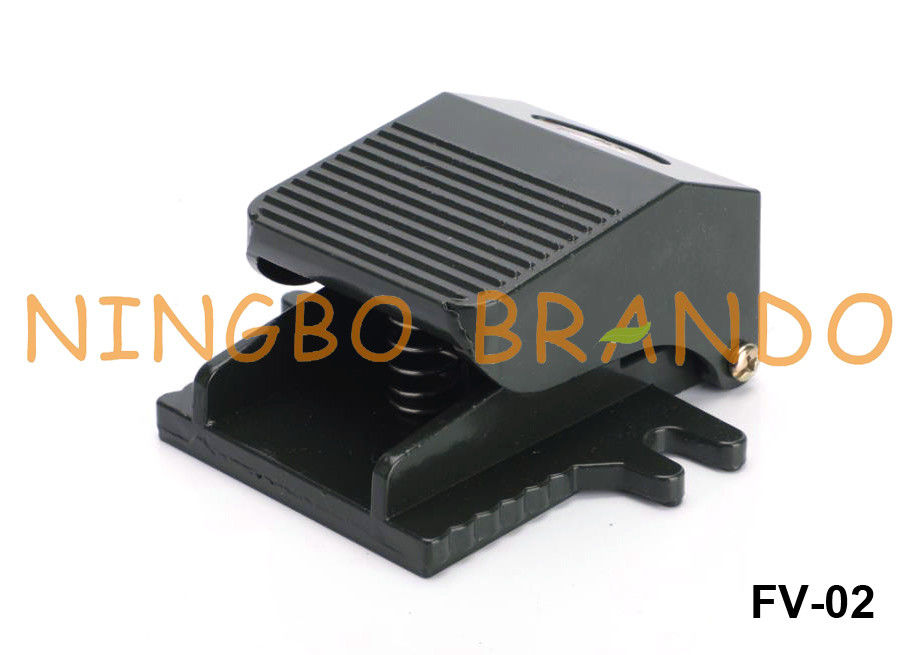

FV-02 1/4'' Foot Pedal Operated Air Directional Control Valve 3 Way
Pneumatic Foot Pedal Valve is controlled by foot, can be used in auto car, widely applied to all kinds of pneumatic system. This foot operated air valve is ideally suited to control spring or loaded return pneumatic cylinders allowing pressurized extension and vented retraction or single-directional pneumatic motors allowing control only in a single direction. Pneumatic foot pedal valves can be used to operate devices which hold work pieces in place on bench workstations or perform punching or drilling operations on production pieces.
Technical Data of FV series Foot Pedal Valve:
| Model | FV-02 | FV-320 | FV-420 |
| Fluid | Air (to be filtered by 40μm filter element) | ||
| Operating | Acting type controlled by foot | ||
| Port Size |
1/4'' |
In=Out=1/4'', Exhaust=1/8'' |
In=Out=1/4'', Exhaust=1/8'' |
| Valve Type | 3/2 Way | 3/2 Way | 4/2 Way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | ||
| Proof Pressure | 1.5 MPa (215 psi) | ||
| Temperature | -20 to +70℃ | ||
| Body Material | Aluminum Alloy | ||
Dimension of FV-02 Foot Pedal Valve:
