| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4F210-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Acting Type Controlled By Foot Normally Closed |
|---|---|---|---|
| Port Size: | 1/4'' | Valve Type: | 5 Way 2 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | Foot Pedal Pneumatic Valve,5/2 Foot Pedal Valve,Airtac 4F210-08 |
||

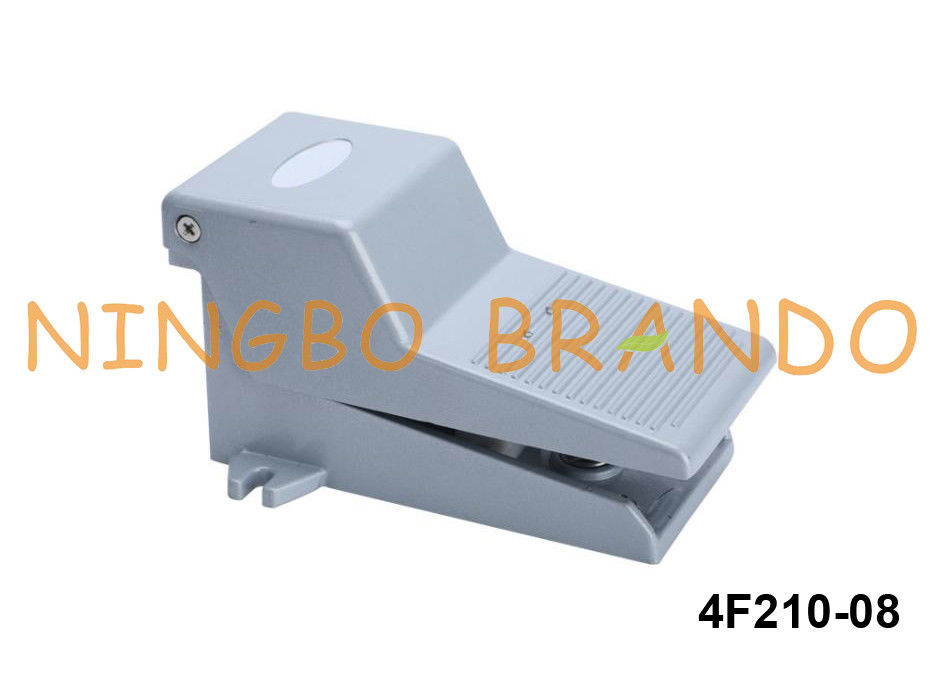

4F210-08 Airtac Type Foot Pedal Pneumatic Valve 5/2 Way
Product Features:
1. The aluminum foot pedal is designed with direct acting, which is steady and reliable;
2. If the duration of direction-change is long, the valves with lock may be used;
3. The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact;
4. Plastic guard with high strength may be used.
Technical Data of 4F series Foot Pedal Valve:
| Model | 4F210-08 | 4F210-08L | 4F210-08F | 4F210-08LF |
| Fluid | Air (to be filtered by 40μm filter element) | |||
| Operating | Acting type controlled by foot | |||
| Port Size |
1/4'' |
|||
| Valve Type | 5/2 way | |||
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | |||
| Proof Pressure | 1.5 MPa (215 psi) | |||
| Temperature | -20 to +70℃ | |||
| Body Material | Aluminum Alloy | |||
Ordering Code of 4F series Foot Pedal Valve:
Inner Structure of 4F series Foot Pedal Valve:
Dimension of 4F series Foot Pedal Valve:
Production Video of BRANDO Pneumatic Valves:
