| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 3F210-06 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Acting Type Controlled By Foot Normally Closed |
|---|---|---|---|
| Port Size: | 1/8'' | Valve Type: | 3 Way 2 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| Highlight: | Airtac Foot Valve,Pneumatic Foot Pedal Valve,Airtac 3F210-06 |
||

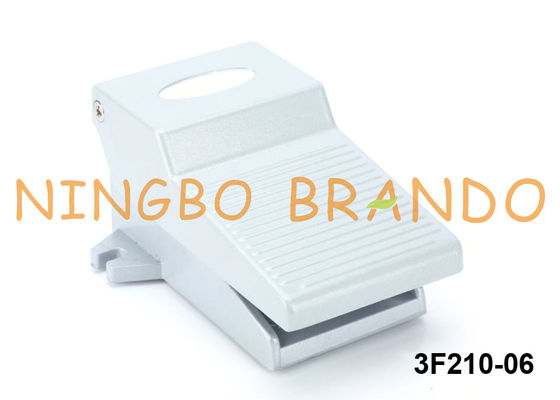

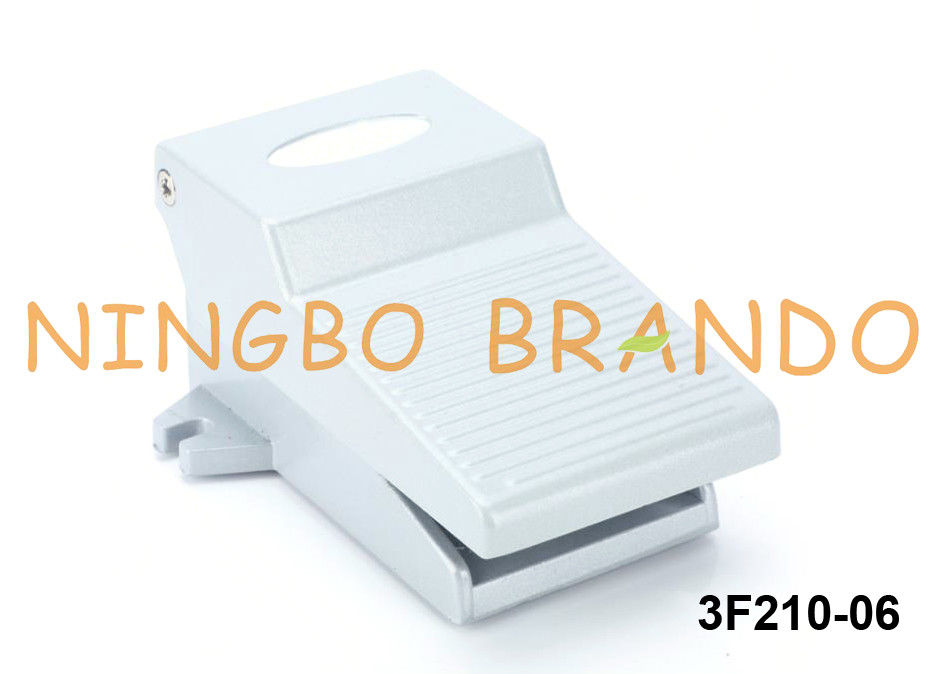

3F210-06 Airtac Type Pneumatic Foot Pedal Valve 3/2 Way
BRANDO designs and manufactures a full range of industrial grade pneumatic foot operated air control valves. Our easy to install foot pedal valves come in many configurations to fit your project needs, including 4 way 3 position center closed, 4 way 2 position, and 3 way 2 position. At here we carry a huge variety of foot pedal valves with various features; safety foot guards and pedal lock down switches. Our professional and knowledgeable staff are always happy to help you find the right valve for the job.
Technical Data of 3F, 3FM series Foot Pedal Valve:
| Model | 3F210-M5 | 3F210-06 | 3FM210-06 | 3F210-08 | 3FM210-08 |
| Fluid | Air (to be filtered by 40μm filter element) | ||||
| Operating | Acting type controlled by foot normally closed | ||||
| Port Size |
M5 |
1/8'' |
1/8'' |
1/4'' |
1/4'' |
| Valve Type | 3/2 way | ||||
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -20 to +70℃ | ||||
| Body Material | 3FM: Plastic, 3F: Aluminum Alloy | ||||
Ordering Code of 3F, 3FM series Foot Pedal Valve:
Inner Structure of 3F, 3FM series Foot Pedal Valve:
Dimension of 3F, 3FM series Foot Pedal Valve:
Production Video of BRANDO Pneumatic Valves:
