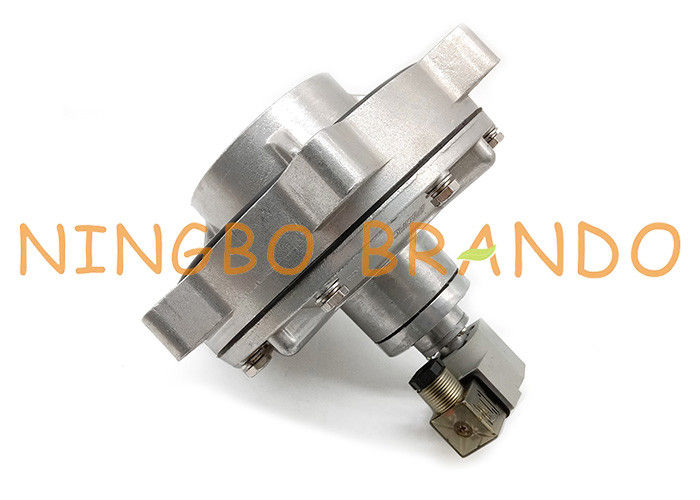

CA76MM MM Seires 3'' Inch Submerged Dust Collector Diaphragm Valve

CA76MM MM Seires 3'' Inch Submerged Dust Collector Diaphragm Valve

The blowing air volume of the electromagnetic pulse valve is the key to determining how many filter bags (filtering area) can be cleaned, but it is not scientific to judge its cleaning ability only from the blowing volume of the electromagnetic pulse valve. Because some pulse valves cannot be closed in time and the blown air volume increases, it has no effect on the dust removal of the filter bag except for increasing the consumption of compressed gas and wasting energy. For a pulse valve with good performance and quality, its blowing air volume is also restricted by many factors in the cleaning system: from the input end of the pulse valve, the volume and pressure of the gas distribution box, and the supply of the gas distribution box The inner diameter of the air pipe and the air supply capacity of the air source directly affect the blowing performance and blowing air volume of the same pulse valve: on the load end of the electromagnetic pulse valve, that is, the filter bag it blows, the temperature of the dusty gas that it filters, Humidity, dust concentration, specific gravity and viscosity, filtration speed, equipment resistance will all put forward different requirements for blowing performance and air volume. The number and structure of nozzles (nozzles), filter bag material, diameter, length and quantity, and dust removal. Various factors such as form (online, offline), dust removal control (timing, constant pressure difference), etc., all affect and restrict the injection performance and dust removal effect of the pulse valve to varying degrees.

Video On Youtube About CA76MM 3'' Solenoid Pusle Valve:

Technical Data of CA76MM Manifold Mount Pulse Valve:

Special voltages and special specifications, please contant us.

Overall Dimension:

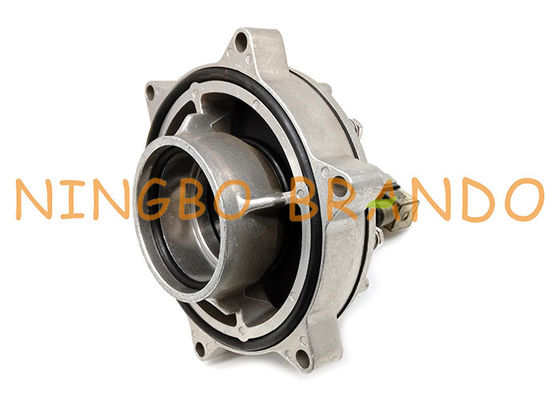

Details About CA76MM Submerged Pulse Valve:

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel

Maintenance Kits of CA76MM Valve:
