| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | CA45FS |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Flange Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1.5'';1-1/2''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | CA45FS Pulse Jet Valve,1.5'' Inch Pulse Jet Valve,Goyen Type CA45FS |
||

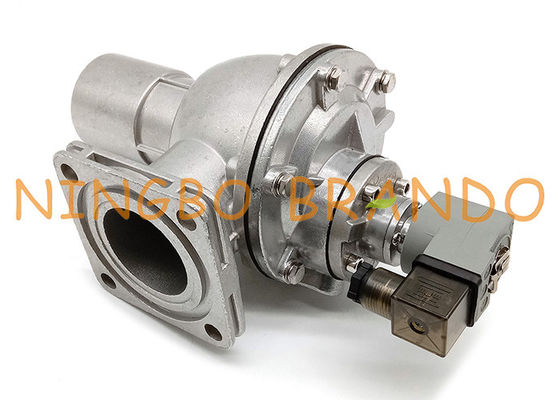

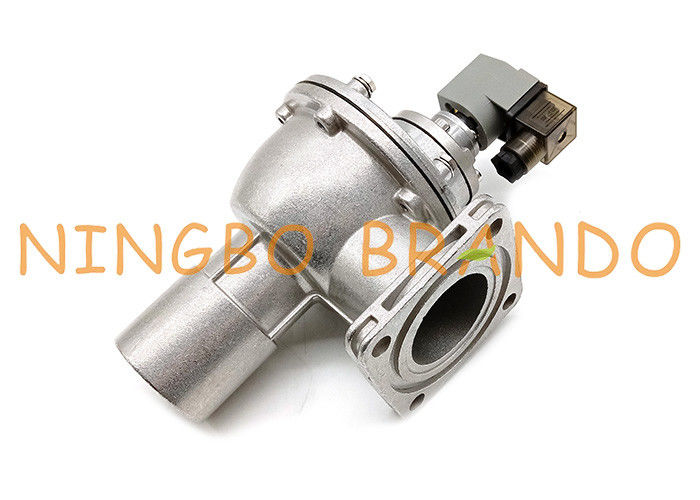

CA45FS 1.5'' Inch Diaphragm Flange Dust Collector Pulse Jet Valve
Technical Data of Goyen Pulse Jet Valve:
|
Model
|
CAC25FS
|
CAC45FS
|
|
Working Pressure
|
0.3~0.8Mpa
|
|
|
Working Temperature
|
-5~+55℃
|
|
|
Voltage
|
AC24V, AC110V, AC220V, DC24V
|
|
|
Inlet and Out Pipe Size
|
1 1/2'' IN, 1'' OUT
|
2'' IN, 1 1/2'' OUT
|
|
Remote or Integral
|
Integral Pilot
|
|
|
Connection Type
|
Weldless Flange
|
|
|
Body Material
|
Aluminium ADC12
|
|
|
Diaphragm Material
|
NBR(Common), Viton(Available)
|
|
Main Dimension:
CA RCA Series Pulse Jet Valve For Dust Collector System:
Five tips for extending the life of Goyen type FS series flange connection pulse jet valve for dust collector bag filter:
1. First ensure that the voltage of the dust collector pulse jet valve is stable when in use.
2. The air supply pressure of the dust collector must be too low or the dust source is unstable. Before use, it is necessary to check the wiring line of the dust removal trouble regularly.
3. Replace the defective dust collector pulse jet valve parts in time. In the environment with temperature difference, the dust collector pulse jet valve should be used with the oil water separator.
4. The newly installed dust collector first cleans the solder joint impurities in the air bag.
5. Ensure that the clean air temperature of the valve body entering the dust collector pulse jet valve is not lower than -5 °C.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
