| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4HV410-20 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | 3/4'' | Valve Type: | 4 Way 2 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| Highlight: | 3/4'' Hand Lever Valve,4 Way Hand Lever Valve,Airtac 4HV410-20 |
||

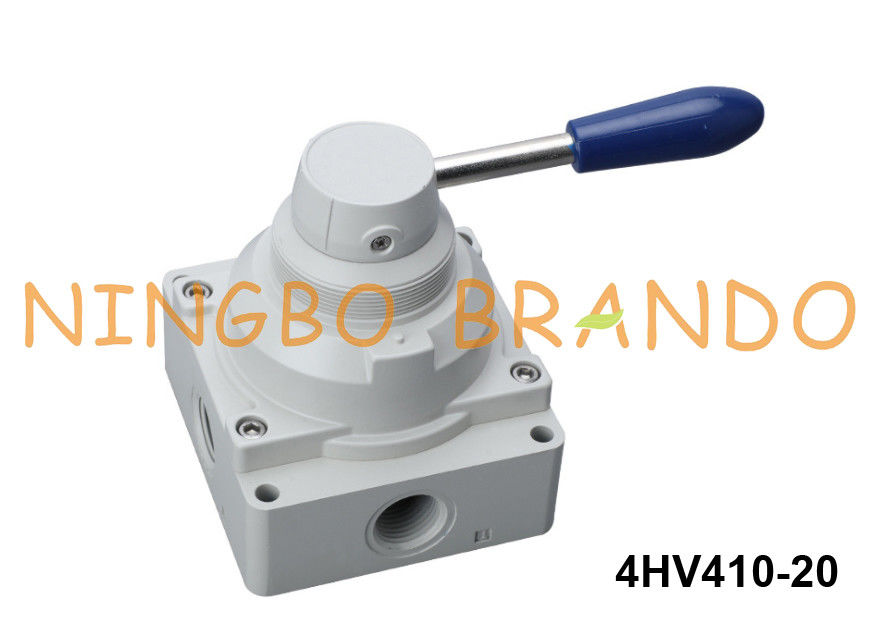

4HV410-20 Airtac Type 3/4'' Hand Lever Air Valve 4 Way 2 Position
Description of hand lever valve:
1. The steering handle is sensitive: the reversing rotation is light, the hand feels good, and the positioning is accurate;
2. Long service life: low starting air pressure, standard thread standard, tight connection and no air leakage, long service life;
3. Professional manufacturing: high-quality materials made of aluminum alloy, outer surface oxidation treatment, good pressure and wear resistance;
4. Three-speed adjustment: clear gear position marking, often used to control the reversal of actuators and other actuators in the middle of the commutation.
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) | |||||
| Operating | Manual control direct acting type | |||||
| Port Size |
1/8'' |
1/4'' |
1/4'' |
3/8'' |
1/2'' |
3/4'' |
| Orifice Size (Cv) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
30.0mm² (Cv=1.67) |
33.0mm² (Cv=1.83) |
88.0mm² (Cv=4.89) |
95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way | |||||
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | |||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||
| Temperature | -20 to +70℃ | |||||
| Body Material | Aluminum Alloy | |||||
| Operating Angle | 90° (4/3 Way: 45°) | |||||
Ordering Code of 4HV series Hand Lever Valve:
Dimension of 4HV series Hand Lever Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|
| Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
