| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4HV330-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | 1/4'' | Valve Type: | 4 Way 3 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| Highlight: | Hand Lever Operated Directional Valve,4/3 Hand Lever Valve,Airtac 4HV330-08 |
||

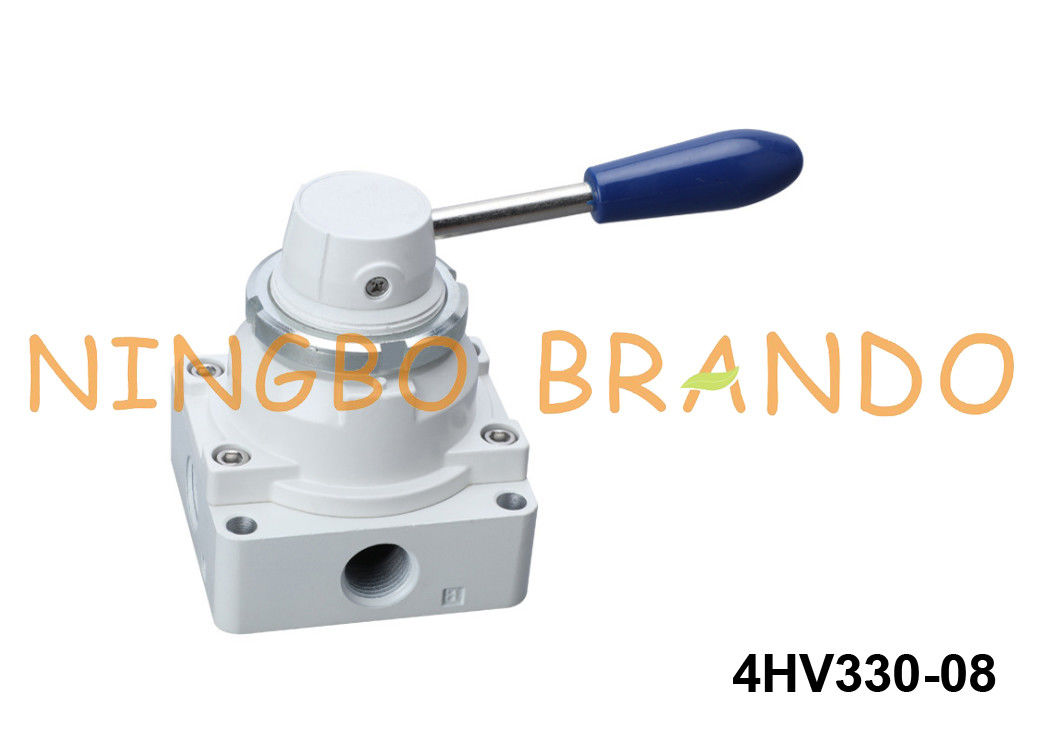

4HV330-08 Airtac Type Hand Lever Operated Directional Valve 4/3 Way
Installation & Usage of 4HV series Hand Lever Valve:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Take measure to avoid vibration and frozen.
5. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread seal tape is used correctly.
6. To keep the dust away, Never forget to install dirt-proof boot in air intake and outlet during dismounting.
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) | |||||
| Operating | Manual control direct acting type | |||||
| Port Size |
1/8'' |
1/4'' |
1/4'' |
3/8'' |
1/2'' |
3/4'' |
| Orifice Size (Cv) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
30.0mm² (Cv=1.67) |
33.0mm² (Cv=1.83) |
88.0mm² (Cv=4.89) |
95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way | |||||
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | |||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||
| Temperature | -20 to +70℃ | |||||
| Body Material | Aluminum Alloy | |||||
| Operating Angle | 90° (4/3 Way: 45°) | |||||
Ordering Code of 4HV series Hand Lever Valve:
Dimension of 4HV series Hand Lever Valve:
