| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4HV230-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | 1/4'' | Valve Type: | 4 Way 3 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | Hand Lever Valve Pneumatic,Rotary Hand Lever Valve,Airtac 4HV230-08 |
||

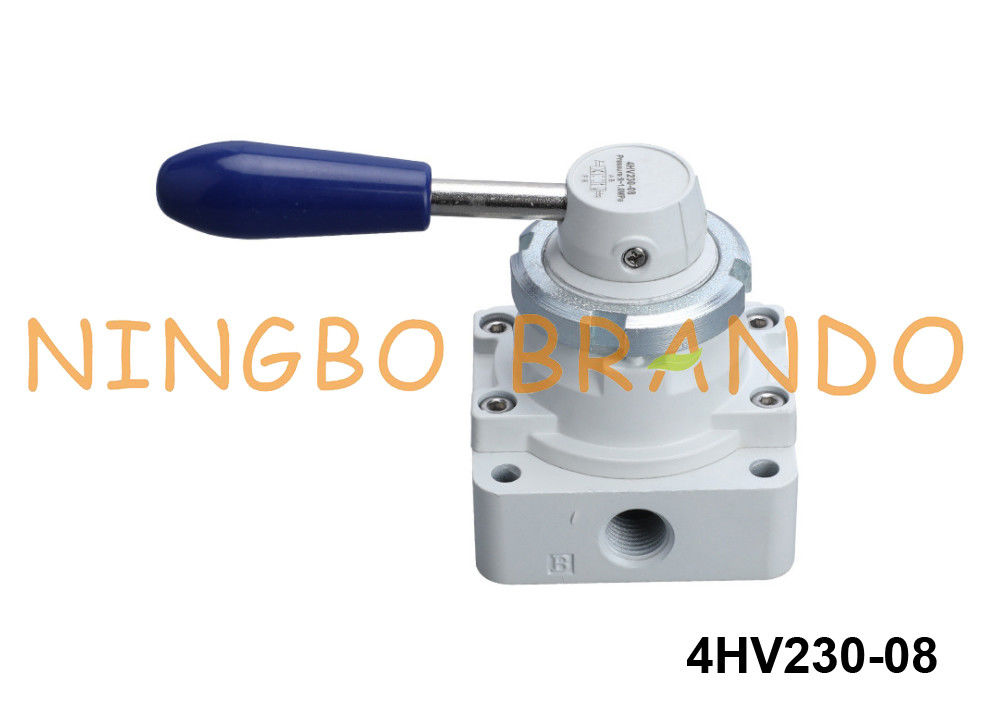

4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic
4HV series are compact rotary hand valves with a variety of flow rates. Suitable for applications that require manual directional control. These valves are easy to operate while offering a high tolerance to contamination.
Features:
1. Made of high quality aluminium alloy, durable to use.
2. There is 3 position 4 way hand lever valve, three central function for your choice.
3. It is easy to reverse rotation, comfortable handle and accurate positioning.
4. The effective circulation area of this product is large.
5. Widely in packaging, food, textile, plastic machinery, medical and other industries.
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) | |||||
| Operating | Manual control direct acting type | |||||
| Port Size |
1/8'' |
1/4'' |
1/4'' |
3/8'' |
1/2'' |
3/4'' |
| Orifice Size (Cv) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
30.0mm² (Cv=1.67) |
33.0mm² (Cv=1.83) |
88.0mm² (Cv=4.89) |
95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way | |||||
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | |||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||
| Temperature | -20 to +70℃ | |||||
| Body Material | Aluminum Alloy | |||||
| Operating Angle | 90° (4/3 Way: 45°) | |||||
Ordering Code of 4HV series Hand Lever Valve:
Dimension of 4HV series Hand Lever Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|
| Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
