| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | 720 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Solenoid Valve Timer | Time ON: | From 0.5 To 10s |
|---|---|---|---|
| Time OFF: | From 0.5 To 45 Min | Indicators: | Yellow LED |
| Inrush Current: | 10A For 10ms | Manual Override: | Test |
| Protection Class: | IP65, EN 60529 | Termination: | DIN 43650A |
| High Light: | Water Solenoid Valve Timer,Digital Electronic Timer For Drain Valve,Timer Switch For Solenoid Valve |
||

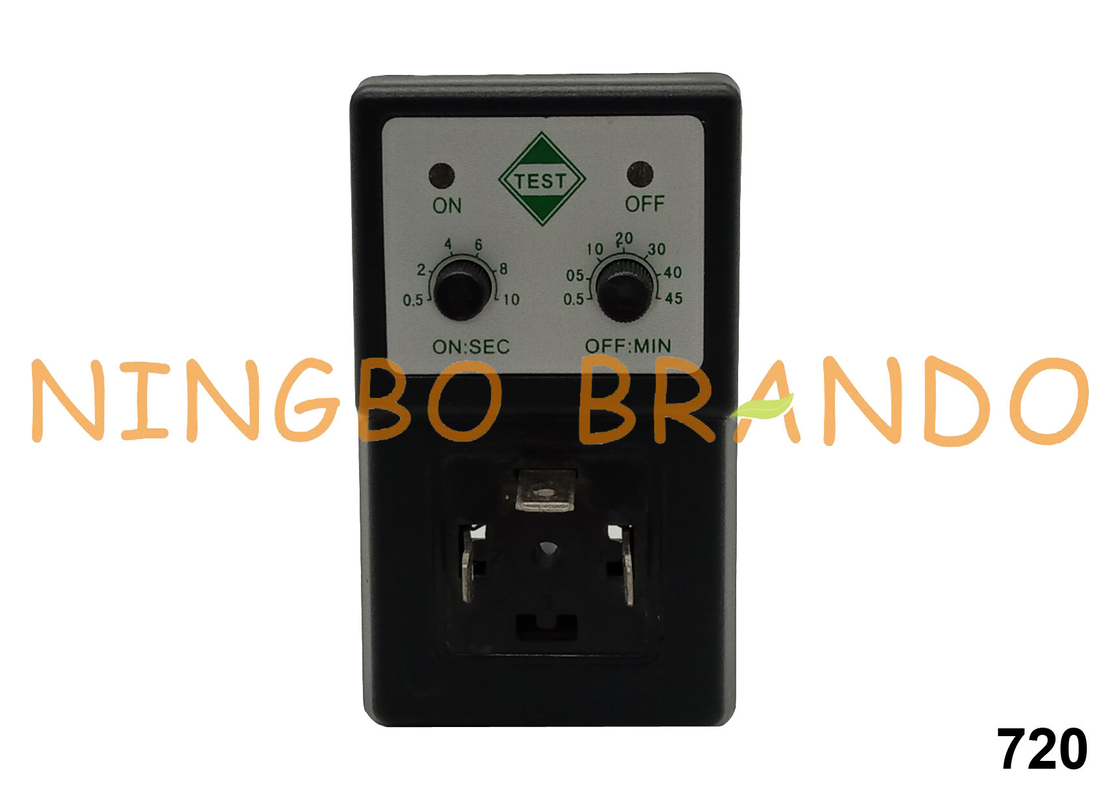

DIN43650A Digital Electronic Timer For Auto Drain Water Solenoid Valve
This high quality electronic timer is designed for on-off timing of solenoid valves. It is ideal for control of: auto-drain valves, sampling valves, lubrication systems and air dryers. The timer mounts directly on solenoid valves with DIN 43650A Form A connectors. An LED indicates valve status.
Technical data of Solenoid Valve Timer:
|
Supply voltage
|
24V to 240V AC/DC 50Hz/60Hz
|
|
Absorption current
|
4mA Max
|
|
Operating temperature
|
-10℃ to +50℃
|
|
Class protection
|
IP65-EN 60529
|
|
Switch holding voltage
|
400V Max
|
|
Switch capacity
|
1A
|
|
Inrush current
|
10A for 10ms
|
|
Duty cycle
|
100%ED
|
|
Switch life
|
3x10^8
|
|
Time ON
|
from 0.5 to 10s
|
|
Time OFF
|
from 0.5 to 45min
|
|
Indicators
|
Yellow LED
|
|
Manual override
|
Test
|
|
Termination
|
DIN43650A
|
Dimension of Solenoid Valve Timer:
