| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4HA230C-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | In=Out=1/4'', Exhaust=1/8'' | Valve Type: | 5/3 Way |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | Airtac Hand Lever Valve,Manual Air Control Valve,Airtac 4HA230C-08 |
||

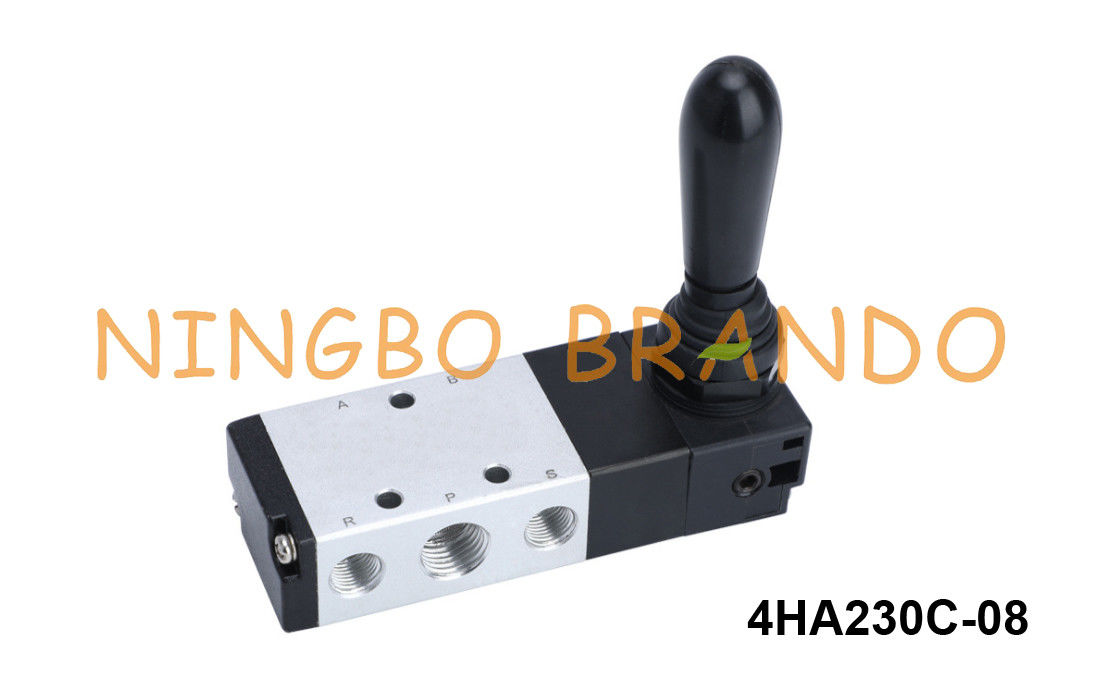

4HA230C-08 Airtac Type Manual Air Control Valve 5 Way 3 Position
Hand Lever Valves are used to operate Pneumatic Cylinders. In the absence of electrical supply, manually operated valves such as Hand Lever Valves are used. The functioning is the same, however, the solenoid coil is replaced by a hand lever, which controls the movement of the spool inside the valve, thereby allowing the air to pass.
Product Features:
1. Valve Type: 3 position 5 way hand lever valve.
2. Durable: Aluminum alloy valve body, wearable and pressure resistant, lasting to use.
3. Manual Control: Black lever switch makes it convenient to control the valve by hand.
4. Easy to Use: Compact and lightweight structure, easy to install and use.
5. Stable Performance: Precision manufacturing, good airtightness, stable and reliable performance.
Technical Data of 4H series Hand Lever Valve:
| Model | 210-06 | 230-06 | 210-08 | 230-08 | 310-08 | 330-08 | 310-10 | 330-10 |
| Fluid | Air (to be filtered by 40μm filter element) | |||||||
| Operating | Manual control direct acting type | |||||||
| Port Size |
In=Out= Exhaust=1/8'' |
In=Out=1/4'', Exhaust=1/8'' |
In=Out= Exhaust=1/4'' |
In=Out=3/8'', Exhaust=1/4'' |
||||
| Orifice Size (Cv) |
4H210-08: 17.0 mm² (Cv=1.0) 4HA230C-08: 13.6 mm² (Cv=0.8) |
4H310-08: 28.0 mm² (Cv=1.65) 4HA330C-08: 21.3 mm² (Cv=1.25) |
||||||
| Valve Type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | |||||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||||
| Temperature | -20 to +70℃ | |||||||
| Body Material | Aluminum Alloy | |||||||
| Operating Angle | ±15° | ±8.5° | ±15° | ±8.5° | ±18° | ±10° | ±18° | ±10° |
Ordering Code of 4H series Hand Lever Valve:
Dimension of 4H series Hand Lever Valve:
Inner Structure of 4H series Hand Lever Valve:
Production Video of BRANDO Pneumatic Valves:
