Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | TSV9832-02M |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiation |
Packaging Details: | Individual box, Carton, Pallet |
Delivery Time: | 4 to 7 working days |
Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
Supply Ability: | 200000 pcs per month |
Product Name: | Hand Control Valve | Fluid: | Compressed Air |
---|---|---|---|
Port Size: | In=Out=Exhaust=1/4'' | Valve Type: | 3 Way 2 Position |
Pressure Range: | 0 To 9 Kgf/cm² | Max Pressure Resistance: | 10 Kgf/cm² |
Temperature Range: | -10 To +60℃ | Body Material: | Aluminum Alloy |
High Light: | Shako Hand Control Valve,Pneumatic Hand Control Valve,Shako TSV9832-02M |

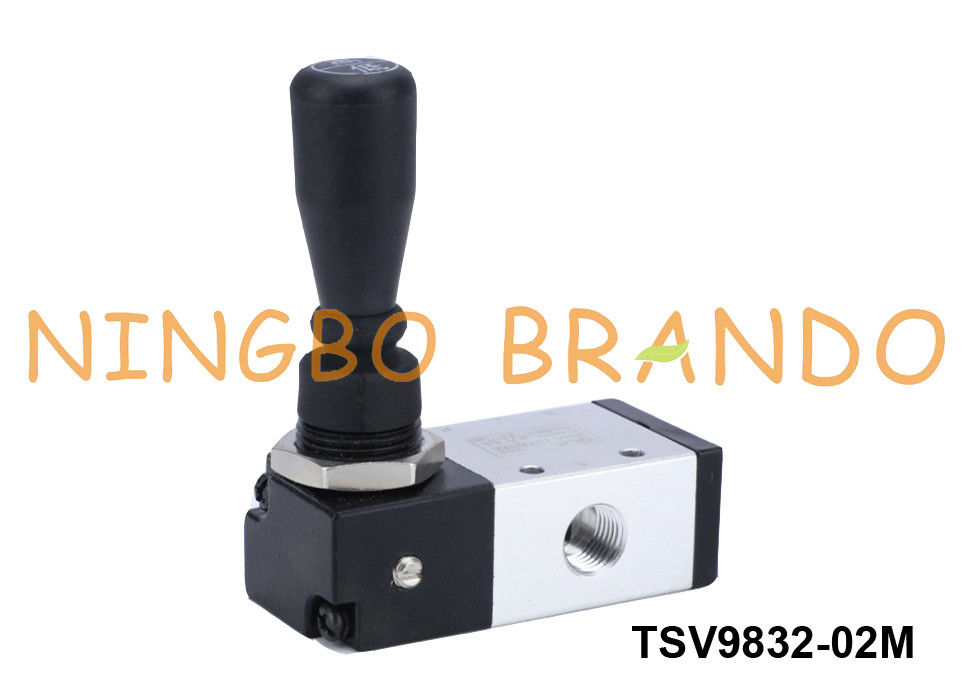

TSV9832-02M Shako Type Pneumatic Hand Control Valve 3/2 Way
BRANDO pneumatic air control valves feature a variety of manual actuators that allow the user to quickly change between a set of directions of flow, also known as "positions", in order to control the flow of pressurized air through desired ports. Thus, any single direction of flow, or "way", can be altered with a simple flick of a switch, press of a button, twist of a knob, or turn of a lever, as well as other manual options.
Application of these control valves are suitable for any pneumatic task, from DIY projects at home to burly industrial use. With varying port sizes from 1/8'', 1/4'', 3/8'', and 1/2'', diverse valve body sizes and forms, as well as pre-drilled mounting holes through the body of the controller, you're bound to find the right valve for your needs.
Features
1. A spring return hand lever allows the user to momentarily change the direction of flow.
2. A built-in spring returns the lever to its normal position.
3. The normal position is open, allowing a constant flow of air through the designated port.
4. Can be panel mounted with the button's shaft or through three pre-drilled mounting holes in the valve's body.
5. Maximum operating pressure of 10 kgf/cm².
Technical Data of TSV9832 series Hand Control Valve:
Model | TSV9832-01M(S) | TSV9832-02M(S) |
Port Size |
In=Out=Exhaust=1/8'' |
In=Out=Exhaust=1/4'' |
Body Material | Aluminum Alloy | |
Fluid | Compressed Air | |
Sectional Area | 18mm² | |
Operating Pressure Range | 0 to 9 kgf/cm² | |
Proof Pressure | 10 kgf/cm² | |
Ambient Temperature | -10 to +60℃ |
Ordering Code of TSV9832 series Hand Control Valve:
Dimension of TSV9832-02 Hand Control Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
