| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | TSV8652-02M |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Hand Control Valve | Fluid: | Compressed Air |
|---|---|---|---|
| Port Size: | In=Out=1/4'', Exhaust=1/8'' | Valve Type: | 5 Way 2 Position |
| Pressure Range: | 0 To 9 Kgf/cm² | Max Pressure Resistance: | 10 Kgf/cm² |
| Temperature Range: | -10 To +60℃ | Body Material: | Aluminum Alloy |
| High Light: | Shako Hand Control Valve,Hand Operated Air Valve,Shako TSV8652-02M |
||

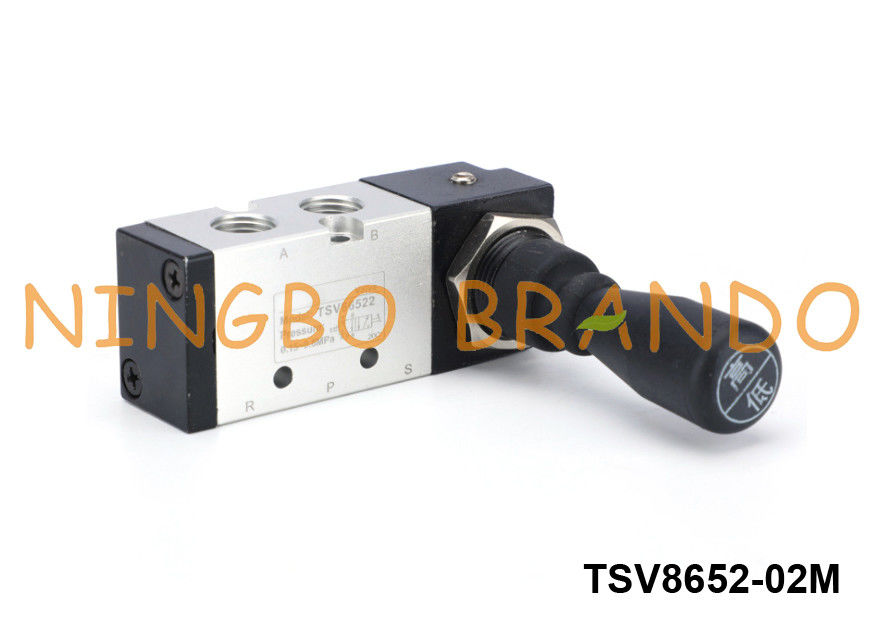

TSV8652-02M Shako Type Hand Operated Air Valve 5/2 Way
The TSV8652-02M is a manual pneumatic directional valve with a four-way operation & five ports (P = Pressure, A = Outlet 1, B = Outlet 2, EA = Exhaust for port A, EB = Exhaust for port B). Four-way, two-position valves are generally used to fully extend and retract a double acting cylinder, or in applications with similar operation.
Product Features:
1. Manual operation, smooth actuation,and exact and reliable orientation;
2. Sliding column structure has good tightness and light weight and is easy to install and dismount;
3. Internal hole adopts special processing technology which has little attrition friction, long service life;
4. No need to add oil for lubrication;
5. Panel-mounting makes it convenient to install and apply.
Technical Data of TSV8652 series Hand Control Valve:
| Model | TSV8652(R)-01M(S) | TSV8652(R)-02M(S) | TSV8652(R)-03M(S) | TSV8652(R)-04M(S) |
| Port Size |
In=Out= Exhaust=1/8'' |
In=Out=1/4'', Exhaust=1/8'' |
In=Out= Exhaust=3/8'' |
In=Out= Exhaust=1/2'' |
| Body Material | Aluminum Alloy | |||
| Fluid | Compressed Air | |||
| Sectional Area | 14mm² | 18mm² | 35mm² | 38mm² |
| Operating Pressure Range | 0 to 9 kgf/cm² | |||
| Proof Pressure | 10 kgf/cm² | |||
| Ambient Temperature | -10 to +60℃ | |||
Ordering Code of TSV8652 series Hand Control Valve:
Dimension of TSV8652-02 Hand Control Valve:
Explosion of TSV8652 series Hand Control Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|
| Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
