| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | TSV86522M |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Hand Control Valve | Fluid: | Compressed Air |
|---|---|---|---|
| Port Size: | In=Out=1/4'', Exhaust=1/8'' | Valve Type: | 5 Way 2 Position |
| Pressure Range: | 0 To 9 Kgf/cm² | Max Pressure Resistance: | 10 Kgf/cm² |
| Temperature Range: | -10 To +60℃ | Body Material: | Aluminum Alloy |
| High Light: | Shako Hand Control Valve,Pneumatic Hand Control Valve,Shako TSV86522M |
||

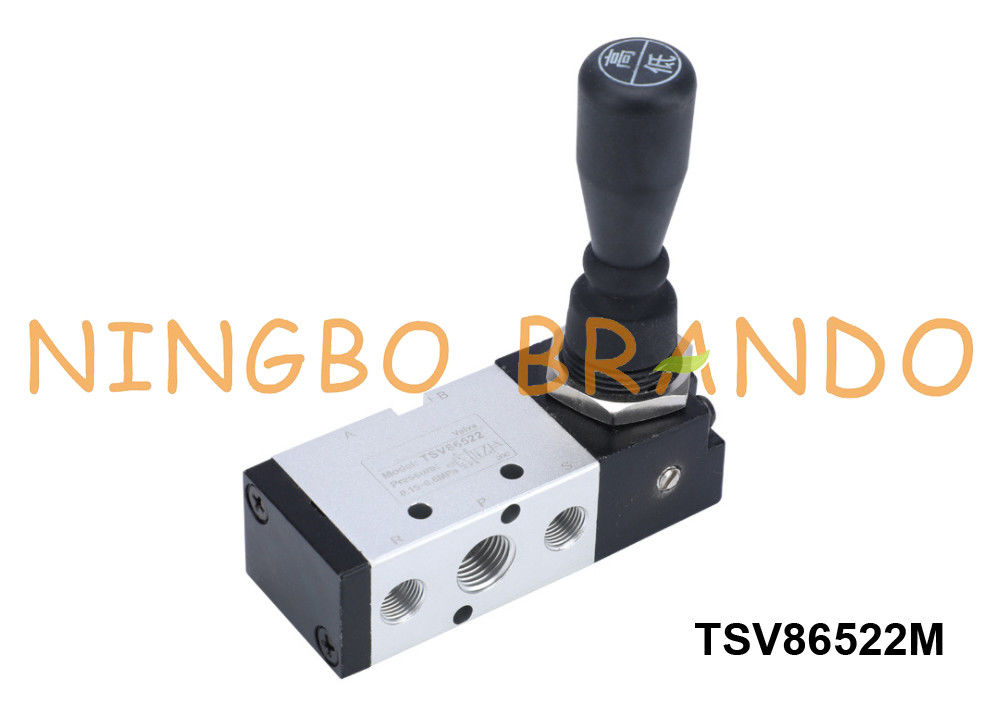

TSV86522M Shako Type Pneumatic Hand Control Valve 5/2 Way
BRANDO has accumulated more than 10 years experience in the design and manufacture of mechanical control valves. We always committed to develop products that meet customer's demand. Now we have a series of mechanical valves, such as 3 way mechanical valve, 4 way mechanical valve, 5/2 way hand control valves, etc. We specially invest and put more efforts to develop new products and equipment meeting quality of ISO9001 procedures and the world standard and internationalized specification, identically with products of all famous brands.
Technical Data of TSV8652 series Hand Control Valve:
| Model | TSV8652(R)-01M(S) | TSV8652(R)-02M(S) | TSV8652(R)-03M(S) | TSV8652(R)-04M(S) |
| Port Size |
In=Out= Exhaust=1/8'' |
In=Out=1/4'', Exhaust=1/8'' |
In=Out= Exhaust=3/8'' |
In=Out= Exhaust=1/2'' |
| Body Material | Aluminum Alloy | |||
| Fluid | Compressed Air | |||
| Sectional Area | 14mm² | 18mm² | 35mm² | 38mm² |
| Operating Pressure Range | 0 to 9 kgf/cm² | |||
| Proof Pressure | 10 kgf/cm² | |||
| Ambient Temperature | -10 to +60℃ | |||
Ordering Code of TSV8652 series Hand Control Valve:
Dimension of TSV8652-02 Hand Control Valve:
Explosion of TSV8652 series Hand Control Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|
| Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
