| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4H230E-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | In=Out=1/4'', Exhaust=1/8'' | Valve Type: | 5 Way 3 Position |
| Pressure Range: | 0 To 1.0 MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | 5/3 Way Hand Lever Valve,Hand Lever Valve Pneumatic,Airtac 4H230E-08 |
||

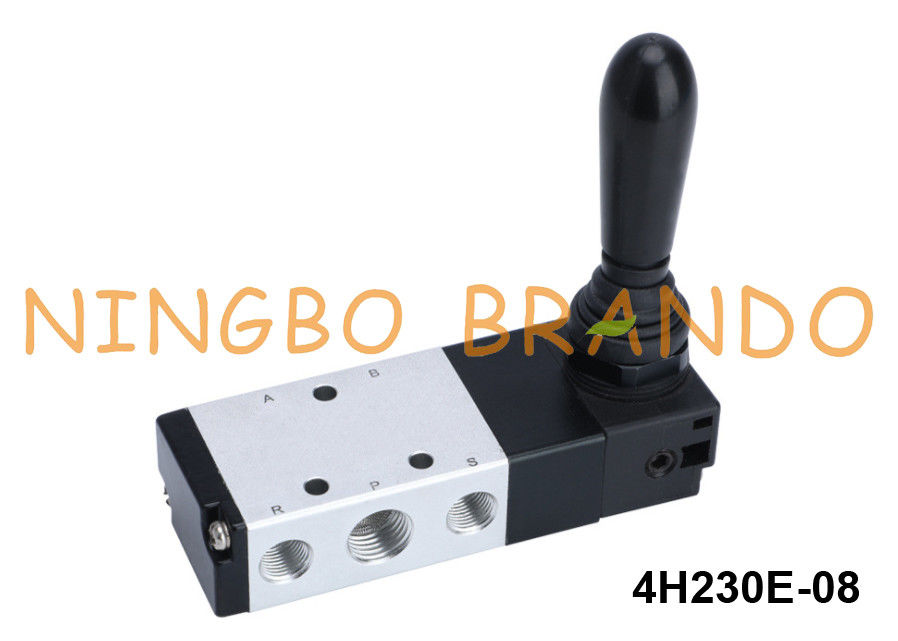

4H230E-08 Airtac Type 5/3 Way Hand Lever Valve Pneumatic
The Airtac type 4H hand lever air valve series, which is a functional replacement for the SMC VZM400 series.
Product Features:
1. Manual operation, smooth actuation,and exact and reliable orientation;
2. Sliding column structure has good tightness and light weight and is easy to install and dismount;
3. Internal hole adopts special processing technology which has little attrition friction, long service life;
4. No need to add oil for lubrication;
5. Panel-mounting makes it convenient to install and apply.
Technical Data of 4H series Hand Lever Valve:
| Model | 210-06 | 230-06 | 210-08 | 230-08 | 310-08 | 330-08 | 310-10 | 330-10 |
| Fluid | Air (to be filtered by 40μm filter element) | |||||||
| Operating | Manual control direct acting type | |||||||
| Port Size |
In=Out= Exhaust=1/8'' |
In=Out=1/4'', Exhaust=1/8'' |
In=Out= Exhaust=1/4'' |
In=Out=3/8'', Exhaust=1/4'' |
||||
| Orifice Size (Cv) |
4H210-08: 17.0 mm² (Cv=1.0) 4HA230C-08: 13.6 mm² (Cv=0.8) |
4H310-08: 28.0 mm² (Cv=1.65) 4HA330C-08: 21.3 mm² (Cv=1.25) |
||||||
| Valve Type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | |||||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||||
| Temperature | -20 to +70℃ | |||||||
| Body Material | Aluminum Alloy | |||||||
| Operating Angle | ±15° | ±8.5° | ±15° | ±8.5° | ±18° | ±10° | ±18° | ±10° |
Ordering Code of 4H series Hand Lever Valve:
Dimension of 4H series Hand Lever Valve:
Inner Structure of 4H series Hand Lever Valve:
Production Video of BRANDO Pneumatic Valves:
