| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 3R310-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | 1/4'' | Valve Type: | 3 Way 2 Position |
| Pressure Range: | 0 To 1.0MPa (0 To 145 Psi) | Max Pressure Resistance: | 1.5 MPa (215 Psi) |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | 3/2 Way Push Pull Valve,Push Pull Air Control Valve,Airtac 3R310-08 |
||

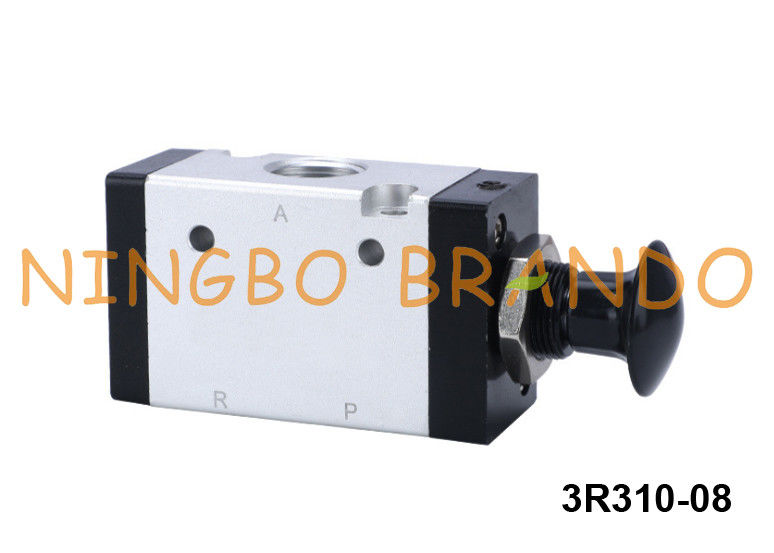

3R310-08 Airtac Type 3/2 Way Manual Push Pull Air Control Valve
【High Quality】: The valve body is made of high-quality sealed PVC material and aluminum alloy structure. The structure is compact, which makes the whole valve body connection more tight and firm, durable and long service life.
【Easy To Use】: The Hand Control Valve circular control handle has the same direction as the shaft, which is easy to operate, convenient for your use, reliable and precise positioning.
【Good Breathability】: This air valve has high-precision stem and seal design ensure good breathability, so you can use it with confidence.
【Small Resistance】: The inner hole of Pneumatic Valve is made by special technology, and the resistance is small, so you can use it for a long time.
【Practical Tool】: 3-way 2-position valve has the characteristics of small size, light weight, good sealing and easy installation. The quality is worthy of your trust.
Technical Data of 3R series Push Pull Valve:
| Model | 3R110-06 | 3R210-06 | 3R210-08 | 3R310-08 | 3R310-10 |
| Fluid | Air (to be filtered by 40μm filter element) | ||||
| Operating | Manual control direct acting type | ||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | ||
| Orifice Size (Cv) |
10.2mm² (Cv=0.6) |
3L210-08: 17.0mm² (Cv=1.0) |
3L310-10: 28.0mm² (Cv=1.65) |
||
| Valve Type | 3/2 Way | ||||
| Pressure Range | 0 to 1.0MPa (0 to 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -20 to +70℃ | ||||
| Body Material | Aluminum Alloy | ||||
Ordering Code of 3R series Push Pull Valve:
Dimension of 3R series Push Pull Valve:
Inner Structure of 3R series Push Pull Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|
| Namur Solenoid Valves | FRL Unit | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
