| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 3R210-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | 1/4 Inch | Valve Type: | 3/2 Way |
| Pressure Range: | 0 To 1.0MPa | Max Pressure Resistance: | 1.5 MPa |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| High Light: | Push Pull Air Control Valve,3/2 Push Pull Valve,Airtac 3R210-08 |
||

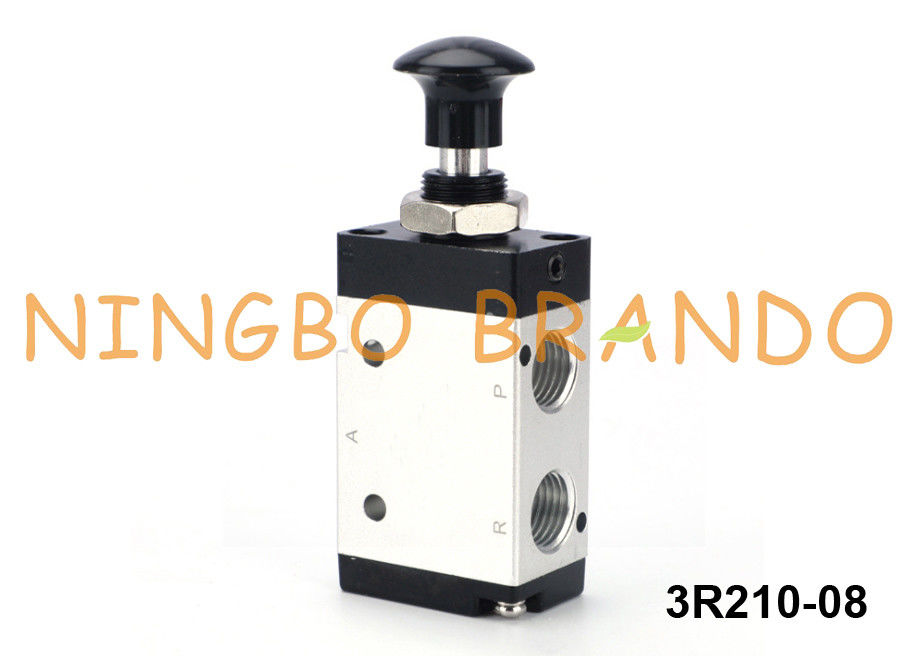

3R210-08 Airtac Type 3/2 Way Hand Push Pull Air Control Valve
Push pull valves for use in manual operation of other pneumatic equipment such as air chucks, vacuum venturi, pneumatic actuators, machine guarding and more. The Airtac type 3R series push pull air control valve series is a functional replacement for the SMC VM200 series.
1. Manual operation, smooth actuation,and exact and reliable orientation;
2. Sliding column structure has good tightness and light weight and is easy to install and dismount;
3. Internal hole adopts special processing technology which has little attrition friction, long service life;
4. No need to add oil for lubrication;
5. Panel-mounting makes it convenient to install and apply.
Technical Data of 3R series Push Pull Valve:
| Model | 3R110-06 | 3R210-06 | 3R210-08 | 3R310-08 | 3R310-10 |
| Fluid | Air (to be filtered by 40μm filter element) | ||||
| Operating | Manual control direct acting type | ||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | ||
| Orifice Size (Cv) |
10.2mm² (Cv=0.6) |
3L210-08: 17.0mm² (Cv=1.0) |
3L310-10: 28.0mm² (Cv=1.65) |
||
| Valve Type | 3/2 Way | ||||
| Pressure Range | 0 to 1.0MPa (0 to 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -20 to +70℃ | ||||
| Body Material | Aluminum Alloy | ||||
Ordering Code of 3R series Push Pull Valve:
Dimension of 3R series Push Pull Valve:
Inner Structure of 3R series Push Pull Valve:
Production Video of BRANDO Pneumatic Valves:
