Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit

Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit

  • Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit
  • Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit
Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: J89
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Name: Diaphragm Repair Kit Suitable Valves: JISI 80, JISR 80, JIHI 80, JIHR 80
Diaphragm Material: NBR (Nitrile) Mounting Hole Size: φ10mm
Diaphragm Outer Diameter: φ193mm Center Distance: φ193mm
Seat Material: NBR (Nitrile) Seat OD: φ102mm
Seat ID: φ51mm Bleed Hole: 1
Packaging: Individual Plastic Bag Sealed
High Light:

Nitrile 3'' Diaphragm Repair Kit

,

JISI80 JISR80 Diaphragm Repair Kit

,

Joil Type 3'' Diaphragm

Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit

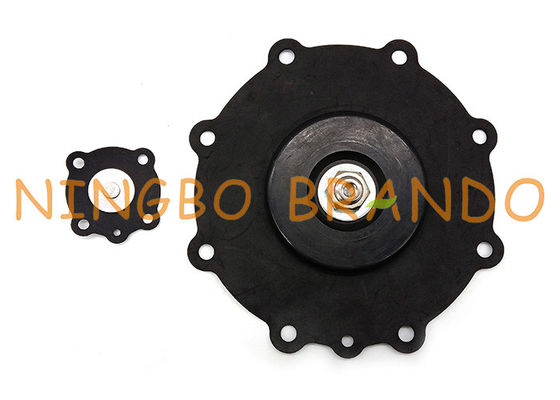

This is Buna (NBR) Diaphragm Kit includes one NBR seat NBR diaphragm and one secondary diaphragm, which is used in joil 3 inch JISI 80, JISR 80, JIHI 80, JIHR 80 pulse jet valves. The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.



YouTube video of Diaphragm Repair Kit For 3'' Joil Pulse Valve:



Main dimension of JISI 80 JISR 80 JIHI 80 JIHR 80 NBR Diaphragm:

Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit 0

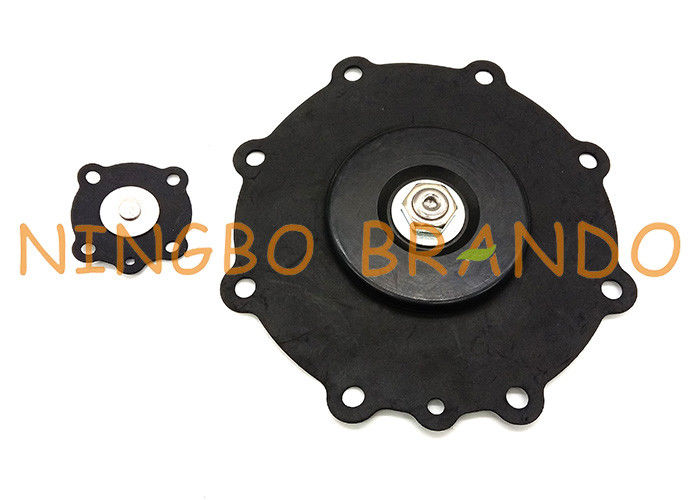

Details display of JISI 80 JISR 80 JIHI 80 JIHR 80 Valve Diaphragm:

Nitrile 3'' Inch JISI80 JISR80 JIHI80 JIHR80 Pulse Valve Diaphragm Repair Kit 1



Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:

Ordering Code
Type
Quatity
Suitable valve
Material
J20
3/4''
1
JICI 20, JICR 20,
JISI 20, JISR 20
Nitrile/Buna
J25
1''
1
JICI 25, JICR 25,
JISI 25, JISR 25
J40 & JTY-X
1 1/2''
2
JICI 40, JICR 40,
JISI 40, JISR 40,
JIFI 40, JIFR 40
J50 & JTY-X
2''
2
JISI 50, JISR 50,
JIFI 50, JIFR 50
J76 & JTY-X
2 1/2''
2
JISI 65, JISR 65,
JIFI 65, JIFR 65
J89 & JTY-X
3''
2
JISI 80, JISR 80,
JIHI 80, JIHR 80
J102 & JTY-X
4''
2
JIHI 100, JIHR 100



Tips: The related solenoid coils and armature assembly are all supplied.



Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



The piston type electromagnetic pulse valve is a new compact type with main advantages:
High efficiency: The opening time is fast, so the impact pressure loss is very small. Since the opening sequence is easy to control, the best gas volume can be selected according to the different processes.
Low loss of compressed air: The piston type reduces the consumption of compressed air compared to the diaphragm type.
Compact structure size: The structure size of the piston pulse valve is much smaller than that of the diaphragm pulse valve of the same specification, which means that the line spacing of the filter bag will not be restricted by the size of the valve.
Only the process parameters (air-to-cloth ratio, bag filter material, fly ash type and concentration) determine the size of the filter bag, and the shortest distance between the two pulse valves can be 160mm.
