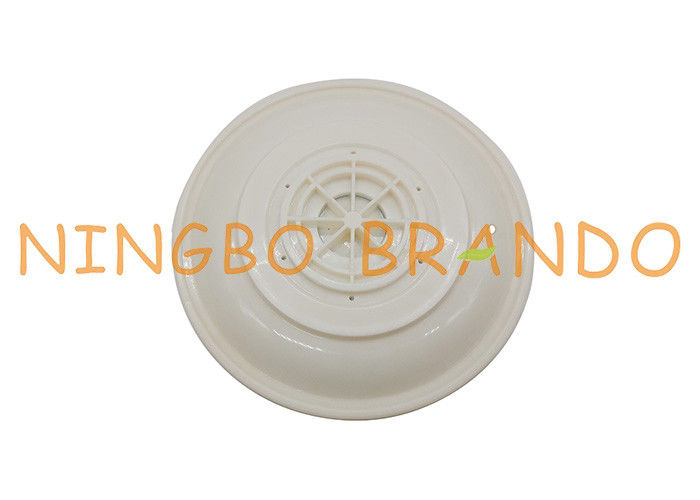

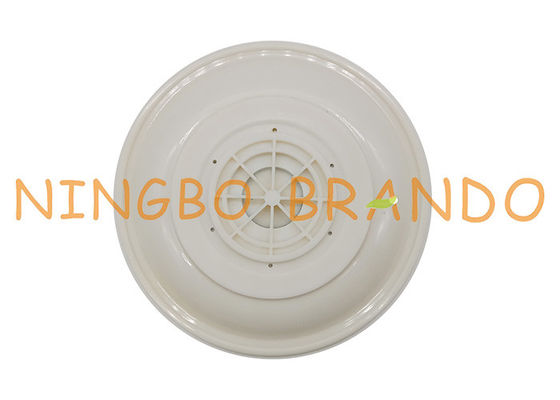

3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit

3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit

  • 3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit
  • 3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit
3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: AE75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: Diaphragm Repair Kit Suitable Valves: AE1475I12
Suitable Valve Port Size: 3'' Diaphragm Material: TPE
Diaphragm Outer Diameter: φ157.0mm Seat OD: φ97.0mm
Seat ID: φ62.0mm Air Hole: With
Number Of Diaphragms: 2 Packaging: Individual Plastic Bag Sealed
High Light:

3" Inch Membrane Repair Kit

,

AE1475I12 Membrane Repair Kit

,

AUTEL Type Diaphragm

3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit





The shown is TPE diaphragm repair kits mounted on AUTEL 3'' inch AE1475I12 diaphragm pulse valves, the main features is following:



1. TPE mateial advantage:Easy recycling, energy saving and environmental protection, can be recycled, high strength, high resilience.

2. Air vents are provided between the large and small diaphragm for better air flow and longer service life of the diaphragm and valve body.

3. The design with integral compression fittings will facilitate installation because there is no need for threaded piping.

4. Each diaphragm is individually packed in a packaging bag.

5. Working Temperature is -20ºC- +82 ºC.
6. The use of the diaphragm is between a few hundred thousand and a million times.



YouTube video of Diaphragm Repair Kit For 3'' AUTEL Pulse Valve:



Main dimension of Diaphragm Repair Kit For AE1475I12 Pulse Valve:

3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit 0



Details of TPE Diaphragm For AUTEL 3'' AE1475I12 Pulse Valve:

3" Inch AE1475I12 Diaphragm Pulse Valve TPE Membrane Repair Kit 1



Available Models of Diaphragm Valve Repair Kits For AUTEL Pulse Valves:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
AE20
AE1818B, AE2818B
3/4''
TPE
AE25
AE1825B, AE2825R
1''
TPE
AE40
AE1440B, AE1440R
AE2440B, AE2440R
1-1/2''
TPE
AE50-60
AE1450B, AE2450R,
AE1460B, AE2460R
2'', 2-1/2''
TPE
AE75
AE1475I12
3''
TPE
Tips: FKM+PTFE also available



Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



Diaphragm Features:


1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.



2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.



3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.



4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility



5. EPDM, Viton all available.
