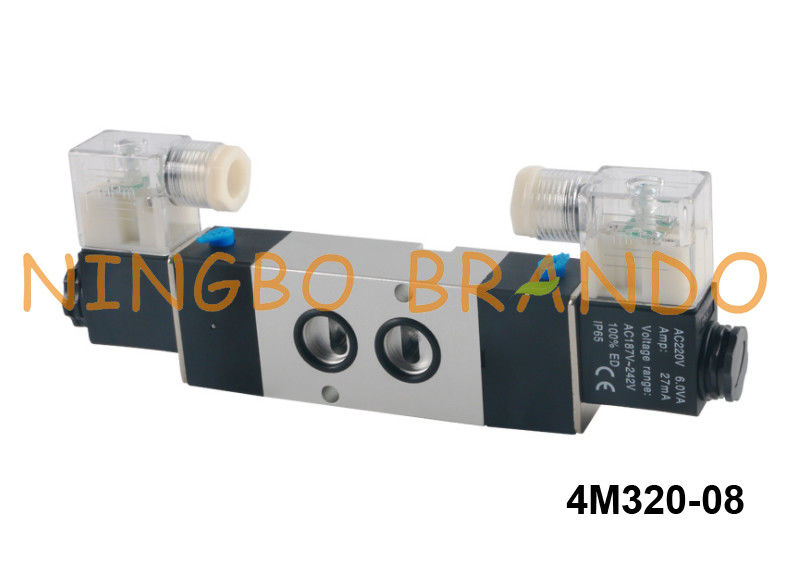

Name: 4M320-08 Airtac Type 5/2 Way Pneumatic Solenoid Valve Namur
Brand: Brando
SKU: 4M320-08
Rating: 4.5 (195 reviews)

Home Products Pneumatic Solenoid Valve

4M320-08 Airtac Type 5/2 Way Pneumatic Solenoid Valve Namur

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4M320-08

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 2 Position	Port Size:	In=Out=1/4''
Pressure Range:	0.15 To 0.8 MPa	Max Pressure Resistance:	1.2 MPa
Body Material:	Aluminum Alloy	Max Frequency:	4 Cycle/ Second
Acting:	Internal Pilot	Temperature Range:	-20 To +70℃
Fluid:	Air (to Be Filtered By 40μm Filter Element)
High Light:	Solenoid Valve Namur , Pneumatic Valve Namur , Airtac 4M320-08

4M320-08 Airtac Type 5/2 Way Pneumatic Solenoid Valve Namur

NAMUR standards apply to various process control elements, including sensors, digital interfaces, valves, and their mountings. NAMUR valves are used as pilot valves to control the actuator in many flow processes. These include dosing and releasing, mixing and distributing, and shutting off the supply of gases, liquids and bulk materials, such as powders or grains. They are widely used in many industry sectors, including water/wastewater, food processing, biotech, pharmaceuticals and chemicals.

NAMUR valves are highly reliable, with a long service life. They provide fast and safe switching in a compact design, which can be directly mounted in any position on a NAMUR mounting plate or interface. Multiple valves can also be mounted on a manifold to supply a number of process control actuators. NAMUR valves demand low control power, and offer good medium compatibility between the process materials. They are often designed with a spring return to provide fail-safe operation in the event of unexpected power loss, and may be protected for outdoor use with a screened exhaust nut.

Technical Data of 4M Series Namur Solenoid Valve:

Model No	4M110-M5 4M120-M5	4M110-06 4M120-06	4M210-06 4M220-06	4M210-08 4M220-08	4M310-08 4M320-08	4M310-10 4M320-10
Fluid	Air (to be filtered by 40 μm filter element)
Port Size	In=Out=M5	In=Out=1/8''	In=Out=1/8''	In=1/4'', Out=1/8''	In=Out=1/4''	In=3/8'', Out=1/4''
Orifice Size	5.5mm² (Cv=0.31)	12.0mm² (Cv=0.67)	14.0mm² (Cv=0.78)	16.0mm² (Cv=0.89)	25.0mm² (Cv=1.40)	30.0mm² (Cv=1.67)
Valve Type	5 Way 2 Position
Operating Pressure	0.15 to 0.8MPa (21 to 114 PSI)
Proof Pressure	1.5MPa (215PSI)
Temperature (℃)	-20 to +70
Body Material	Aluminum Alloy
Max. Frequency	5 Cycle / Second				4 Cycle / Second
Coil Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Protection Class	IP65
Activating Time	0.05 second and below

Dimension of 4A320-08 Namur Solenoid Valve:

4M320-08 Airtac Type 5/2 Way Pneumatic Solenoid Valve Namur 0

Production Video of BRANDO Pneumatic Valves:
