| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4M310-10 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 2 Position | Port Size: | In=3/8'', Out=1/4'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8 MPa | Max Pressure Resistance: | 1.2 MPa |
| Body Material: | Aluminum Alloy | Max Frequency: | 4 Cycle/ Second |
| Acting: | Internal Pilot | Temperature Range: | -20 To +70℃ |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | ||
| High Light: | Airtac Solenoid Valve 4M310-10,Airtac Model 4M310-10,Solenoid Namur Valves |
||

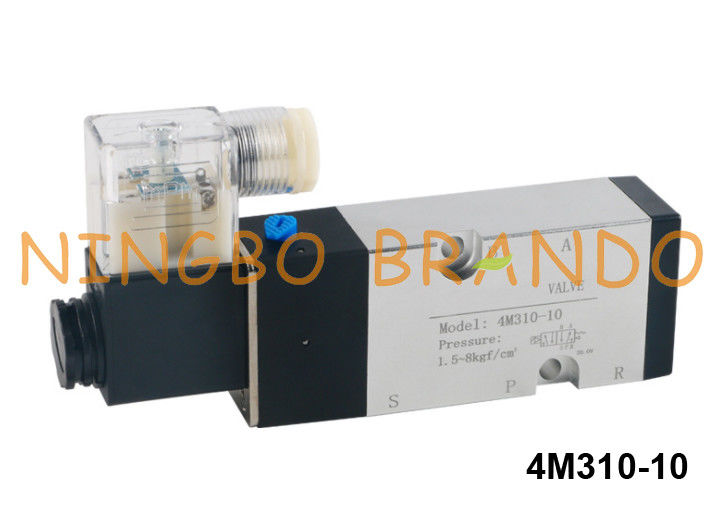

4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way
Product Features:
1. Internally piloted structure.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to faciliate installation and debugging.
8. Several standard voltage grades are optional.
Technical Data of 4M Series Namur Solenoid Valve:
| Model No |
4M110-M5 4M120-M5 |
4M110-06 4M120-06 |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=1/4'', Out=1/8'' | In=Out=1/4'' | In=3/8'', Out=1/4'' |
| Orifice Size |
5.5mm² (Cv=0.31) |
12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.40) |
30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||
Dimension of 4A310-10 Namur Solenoid Valve:
