| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 3A320-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 3 Way 2 Position | Port Size: | In=Out=1/4'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8 MPa | Max Pressure Resistance: | 1.5 MPa |
| Body Material: | Aluminum Alloy | Max Frequency: | 5 Cycle/ Second |
| Acting: | Exterior Control | Temperature Range: | -20 To +70℃ |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | ||
| High Light: | Air Pilot Directional Valve,3/2 Way Air Pilot Valve,Airtac 3A320-08 |
||

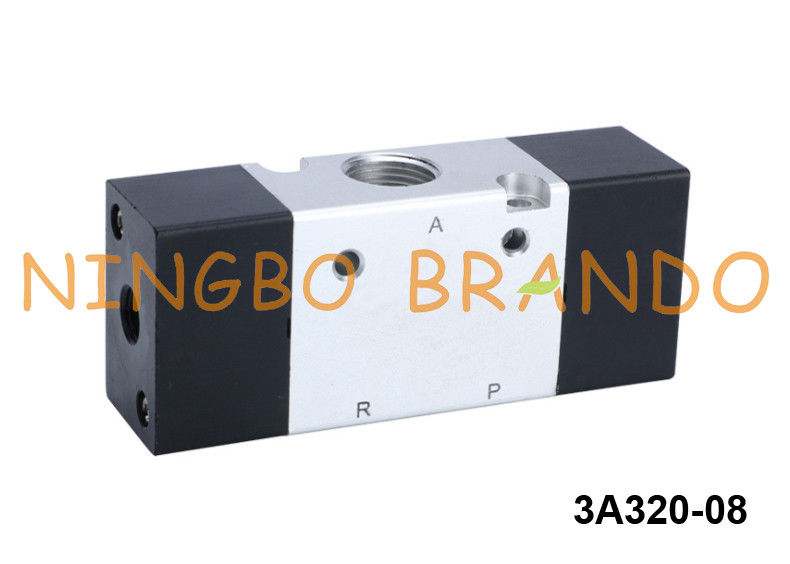

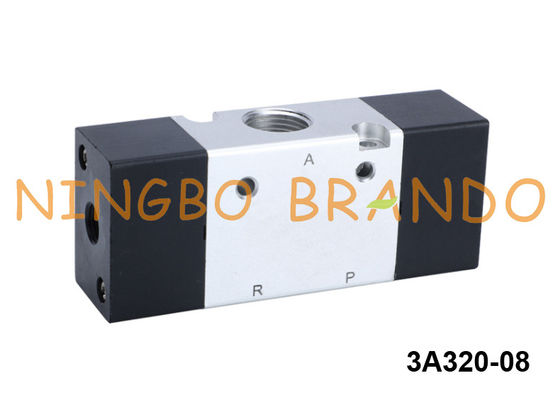

3A320-08 Airtac Type Pneumatic Air Pilot Directional Valve 3/2 Way
Air Pilot Valve Features:
1. Good tightness and sensitive reaction;
2. Three position with three kinds of central function for your choice;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4. Integrate with the manifold to save installation space.
5. Single valve or multiple manifold mounted valve applications
6. Finally a compact design with maximum flow.
Technical Data of 3A300 Series Pneumatic Air Pilot Valve:
Dimension of 3A320-08 Pneumatic Air Pilot Valve:
